ROHM provides a recommended PCB layout in the datasheet, but it's essential to follow general guidelines for high-frequency component placement, such as keeping the signal paths short and using a solid ground plane to minimize noise and electromagnetic interference.
To ensure proper biasing, follow the recommended operating conditions and biasing circuits provided in the datasheet. Additionally, consider using a voltage regulator or a dedicated biasing IC to maintain a stable voltage supply and minimize noise.
The maximum power dissipation of the BU12JA2VG-CGTR is 1.5W. To prevent overheating, ensure proper heat sinking, use a thermal pad or heat sink, and maintain a safe operating temperature range (typically below 125°C). Monitor the device's temperature and adjust the operating conditions accordingly.
Yes, the BU12JA2VG-CGTR is suitable for switching regulator applications due to its high-speed switching capability and low voltage drop. However, ensure the device is properly biased and the switching frequency is within the recommended range to prevent oscillations and ensure stable operation.
To protect the BU12JA2VG-CGTR from ESD, follow standard ESD prevention practices, such as using an ESD wrist strap, anti-static bags, and mats. Ensure the device is handled and stored in an ESD-safe environment, and consider adding ESD protection circuits or devices in the design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU12JA2VG-CGTR Overview

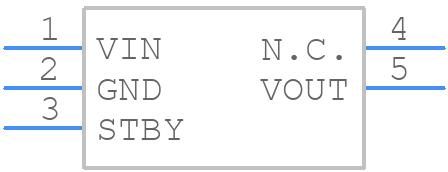

Use the download button to access the BU12JA2VG-CGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU12J,
or try a keyword search, such as Linear Regulator ICs
