The recommended operating temperature range for the BU2092FV-E2 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper soldering and mounting, follow the recommended land pattern and soldering conditions specified in the datasheet. Additionally, use a soldering iron with a temperature range of 250°C to 260°C, and apply a moderate amount of soldering flux. It's also crucial to handle the device by the package body, avoiding touching the pins or electrical connections.
The maximum allowable power dissipation for the BU2092FV-E2 is 1.5 W, as specified in the datasheet. However, it's essential to consider the thermal resistance of the device, PCB, and surrounding environment to ensure the device operates within a safe temperature range.
While the BU2092FV-E2 is a robust device, it's essential to consider the environmental conditions in which it will operate. ROHM Semiconductor recommends following the guidelines for vibration and shock testing specified in the datasheet. Additionally, it's crucial to ensure the device is properly mounted and secured to the PCB to minimize the risk of mechanical damage.
To troubleshoot issues with the BU2092FV-E2, start by reviewing the datasheet and application notes to ensure proper usage and configuration. Next, verify the device's pin connections, power supply, and signal integrity. If the issue persists, consider using diagnostic tools such as oscilloscopes or logic analyzers to identify the root cause. Finally, consult with ROHM Semiconductor's technical support or a qualified engineer for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU2092FV-E2 Overview

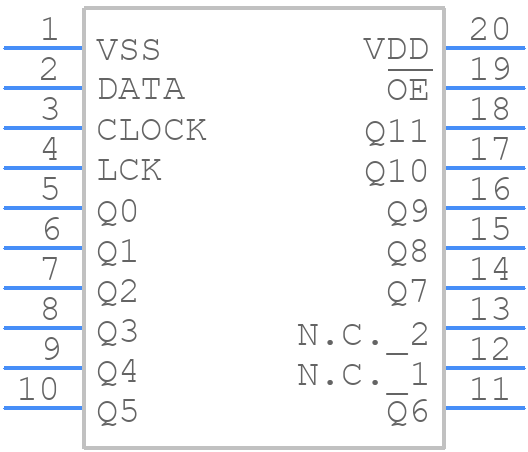

Use the download button to access the BU2092FV-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU209,
or try a keyword search, such as Peripheral Drivers
