SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1 mm
Supply Current-Max:
16.9 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Telecom IC Type:
PROGRAMMABLE CODEC
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
DUAL
Width:
7.5 mm
BU26156RFS-E2 Frequently Asked Questions (FAQs)
The recommended operating temperature range for the BU26156RFS-E2 is -40°C to 105°C.
To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 1uF or more between the VOUT and GND pins, and to keep the input voltage within the specified range.
The maximum input voltage that the BU26156RFS-E2 can handle is 18V.
The BU26156RFS-E2 is designed for low-current applications, and its maximum output current is 150mA. For high-current applications, it is recommended to use a different device or to consult with ROHM Semiconductor for a suitable alternative.
To reduce the noise and ripple in the output voltage, it is recommended to use a capacitor with a value of 1uF or more between the VOUT and GND pins, and to add a noise filter circuit, such as an LC filter, at the output.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU26156RFS-E2 Overview

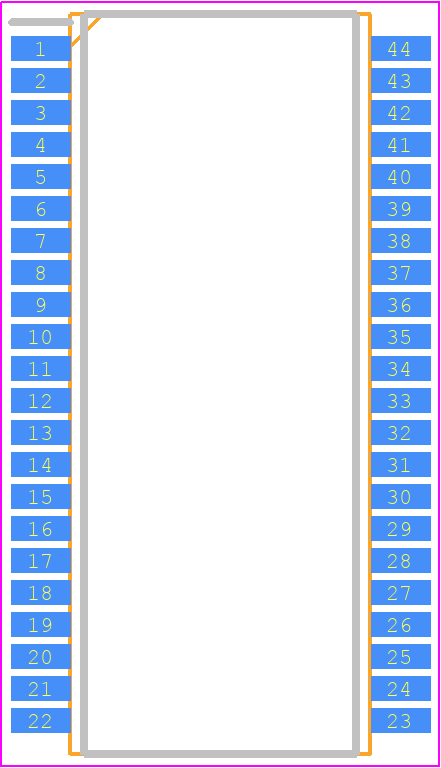

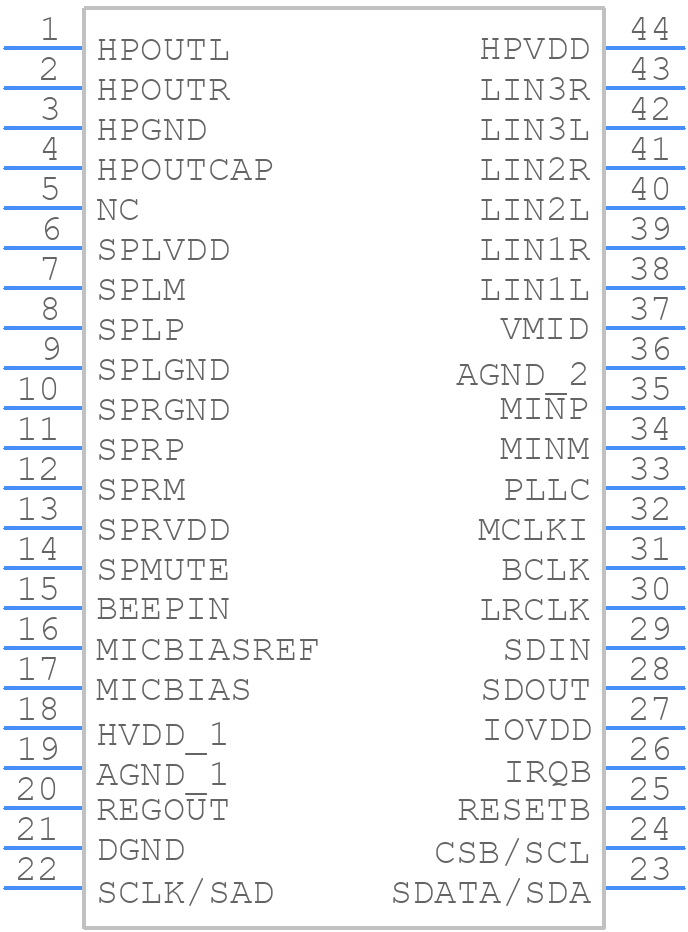

Use the download button to access the BU26156RFS-E2 schematic symbol, PCB footprint, and 3D model.
