BU4030BF-E2 - ROHM Semiconductor

Description: High Voltage CMOS LOGIC ICs <Logic Gate>

Download BU4030BF-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

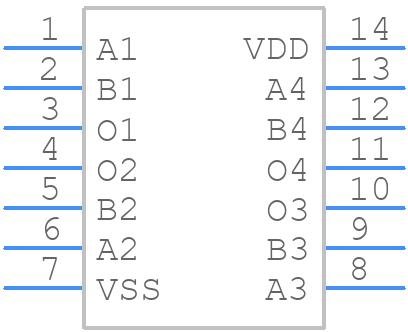

Symbol
BU4030BF-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BU4030BF-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP14
click to zoom
3D Models
BU4030BF-E2 - ROHM Semiconductor - 3D model - Small Outline Packages - SOP14
click to zoom

BU4030BF-E2 Details

  • Manufacturer Part Number:

    BU4030BF-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LSOP, SOP14,.25

  • Pin Count:

    14

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e2

  • Length:

    8.7 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    XOR GATE

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Packing Method:

    TR

  • Propagation Delay (tpd):

    90 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

BU4030BF-E2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the device is operated within the recommended temperature range (Ta=-40°C to 125°C). Use a heat sink or thermal pad to keep the junction temperature (Tj) below 150°C. Monitor the device's thermal resistance (Rth) and adjust the PCB design accordingly.
  • ROHM recommends a 10uF to 22uF ceramic capacitor (X5R or X7R type) with a voltage rating of 10V or higher, placed as close as possible to the VIN pin to ensure stable operation and reduce noise.
  • Use a TVS diode or a zener diode to clamp the input voltage to a safe level. Add a fuse or a PTC thermistor to protect against overcurrent conditions. Ensure that the device is operated within the recommended voltage and current ratings.
  • ROHM recommends a 10uF to 22uF ceramic capacitor (X5R or X7R type) with a voltage rating of 5V or higher, placed as close as possible to the VOUT pin to ensure stable operation and reduce noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BU4030BF-E2 Overview

Use the download button to access the BU4030BF-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU403, or try a keyword search, such as Gates
