The recommended operating voltage range for the BU4093BF-E2 is 4.5V to 5.5V.
To ensure proper power-on and power-off, it is recommended to use a power-on reset circuit and a capacitor between the VCC and GND pins to filter out noise and voltage spikes.
The BU4093BF-E2 supports clock frequencies up to 100 MHz.
To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid exposing the device to high temperatures (above 85°C) for extended periods.
To minimize noise and signal degradation, use a multi-layer PCB, keep signal traces short and away from power traces, and use decoupling capacitors near the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU4093BF-E2 Overview

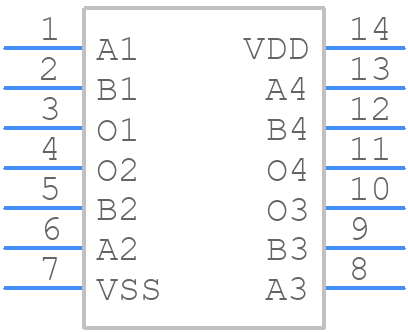

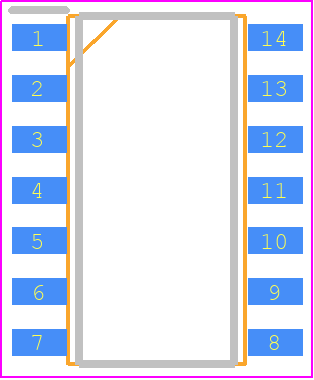

Use the download button to access the BU4093BF-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU409,
or try a keyword search, such as Gates
