The recommended operating temperature range for the BU52004GUL-E2 is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a storage temperature range of -55°C to 150°C.
To ensure proper power-on, make sure to follow the recommended power-up sequence: VCC should be applied before VREF, and VREF should be stable before applying the input signal. Additionally, ensure that the input voltage is within the recommended range of 2.7V to 5.5V.
Although the recommended input voltage range is 2.7V to 5.5V, the BU52004GUL-E2 can handle input voltages up to 6.5V for a short duration (less than 1 second) without causing damage. However, it's essential to note that operating the device at voltages above 5.5V for an extended period may affect its reliability and lifespan.
To minimize power consumption, ensure that the input signal is within the recommended frequency range, and consider using a lower input voltage (e.g., 3.3V) if possible. Additionally, you can reduce the power consumption by using the device's built-in power-down mode, which can be controlled through the EN pin.
The typical propagation delay for the BU52004GUL-E2 is around 10ns, but it can vary depending on the input signal frequency, voltage, and temperature. For more accurate information, refer to the datasheet's timing characteristics section or consult with ROHM Semiconductor's support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU52004GUL-E2 Overview

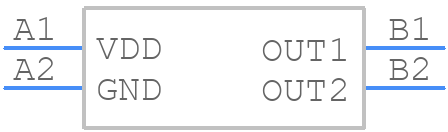

Use the download button to access the BU52004GUL-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU520,
or try a keyword search, such as Magnetic Field Sensors
