BU52025G-TR - ROHM Semiconductor

Description: ROHM - BU52025G-TR - HALL EFFECT, BIPOLAR, SWITCH, 5SSOP

Download BU52025G-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

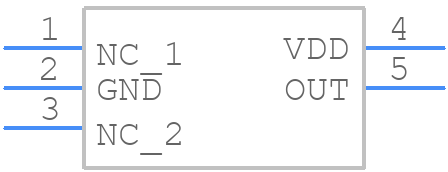

BU52025G-TR - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BU52025G-TR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SSOP5
click to zoom
3D Models
BU52025G-TR - ROHM Semiconductor - 3D model - SOT23 (5-Pin) - SSOP5
click to zoom

BU52025G-TR Details

  • Manufacturer Part Number:

    BU52025G-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Additional Feature:

    SEATED HEIGHT-MAX

  • Body Breadth:

    1.6 mm

  • Body Height:

    1.25 mm

  • Body Length or Diameter:

    2.9 mm

  • Housing:

    PLASTIC

  • Hysteresis:

    0.8 mT

  • Magnetic Field Range-Max:

    5.5 mT

  • Magnetic Field Range-Min:

    0.8 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Current-Max:

    0.012 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Current-Max:

    1 mA

  • Output Polarity:

    INVERTING

  • Output Range:

    0.40-2.60V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

BU52025G-TR Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure proper heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended operating temperature range (Ta = -40°C to 125°C).
  • The maximum allowed voltage on the input pins is 6.5V, exceeding this may cause damage to the device.
  • Yes, the BU52025G-TR is suitable for high-frequency applications up to 100 MHz. However, ensure proper PCB layout and decoupling to minimize noise and signal degradation.
  • Follow standard ESD handling procedures, use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or container.
