Description:High Speedr Push-Pull Comparator: ROHM's low voltage CMOS comparators (BU7251, BU7231, BU7252, and BU7232) integrate input full swing / push-pull output functionality and 1 or 2 circuits on single chip. A low operating voltage range of between 1.8V and 5.5V (single supply configuration) and low current consumption with ultra-low input bias current make them suitable for a wide variety of applications.
A good PCB layout for the BU7251G-TR involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from the device can help reduce EMI.
To ensure the BU7251G-TR operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage and output current are within the recommended specifications.
The BU7251G-TR has a thermal resistance of 25°C/W. To ensure reliable operation, provide adequate heat sinking, and ensure good airflow around the device. Avoid blocking the airflow around the device, and consider using a thermal interface material to improve heat transfer.
Yes, the BU7251G-TR is suitable for high-reliability applications. ROHM Semiconductor has qualified the device to meet the requirements of the AEC-Q100 standard, which ensures the device meets the stringent requirements of the automotive industry.
To troubleshoot issues with the BU7251G-TR, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that there are no signs of physical damage. Use an oscilloscope to check for any unusual waveforms or noise on the input or output.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU7251G-TR Overview

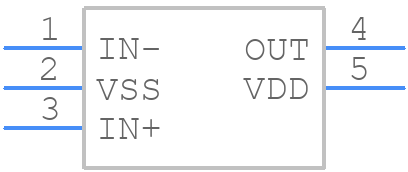

Use the download button to access the BU7251G-TR schematic symbol, PCB footprint, and 3D model.
