BU91796FS-ME2 - ROHM Semiconductor

Description: Low Duty LCD Segment Drivers for Automotive applications

Download BU91796FS-ME2 Model
Schematic

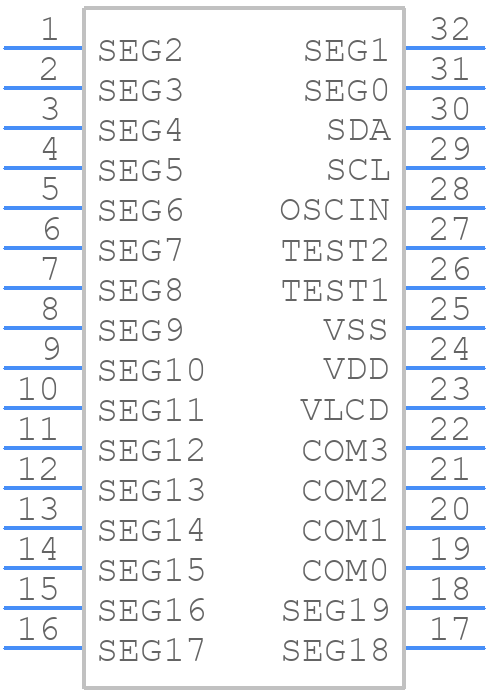

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

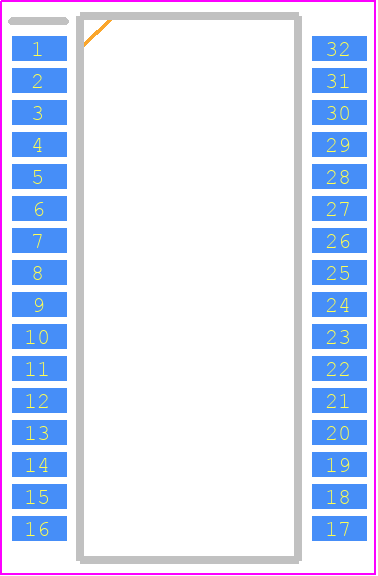

BU91796FS-ME2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-A32
click to zoom
3D Models
BU91796FS-ME2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SSOP-A32
click to zoom

BU91796FS-ME2 Details

  • Manufacturer Part Number:

    BU91796FS-ME2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • Interface IC Type:

    LIQUID CRYSTAL DISPLAY DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED
