ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. ROHM also recommends derating the output current and voltage according to the operating temperature.
The BU97941FV-E2 has built-in ESD protection diodes on all pins, which can withstand up to ±2kV human body model (HBM) and ±200V machine model (MM) ESD events. To prevent latch-up, ROHM recommends using a series resistor and a capacitor on the input lines, as well as ensuring that the power supply voltage is ramped up slowly during power-on.
Yes, the BU97941FV-E2 is qualified for automotive and high-reliability applications. ROHM provides a dedicated automotive grade (BU97941FV-E2-A) that meets the AEC-Q100 standard. Additionally, ROHM offers a long-term availability guarantee and a controlled manufacturing process to ensure high reliability.
ROHM recommends following a systematic troubleshooting approach, starting with checking the power supply voltage, input signals, and output loads. Use an oscilloscope to monitor the device's behavior and identify any anomalies. If the issue persists, contact ROHM's technical support team for further assistance and potential failure analysis.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU97941FV-E2 Overview

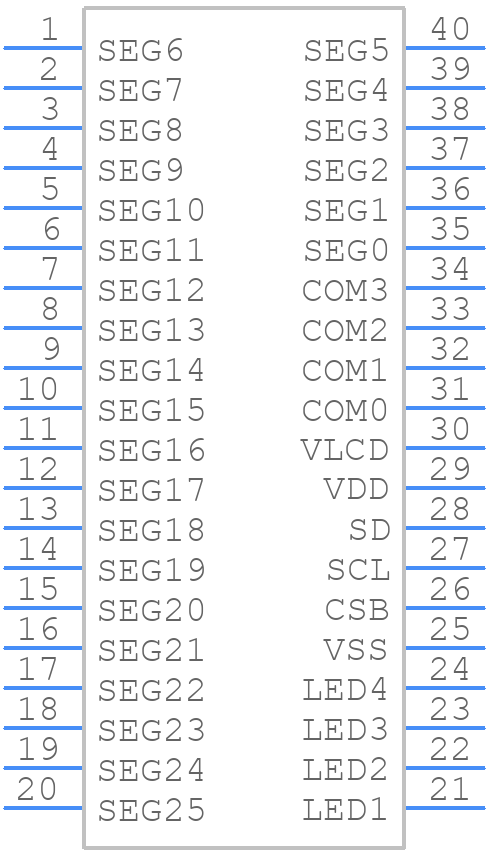

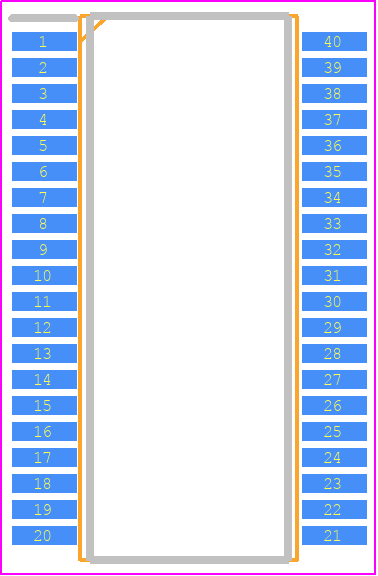

Use the download button to access the BU97941FV-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU979,
or try a keyword search, such as Display Drivers
