ROHM provides a recommended PCB layout in the application note AN11984, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
To ensure the BU9796AMUV-E2 operates within its SOA, monitor the device's junction temperature, voltage, and current. Use thermal management techniques, such as heat sinks or thermal interfaces, to keep the junction temperature below 150°C. Also, ensure the input voltage and current are within the recommended operating range.
The recommended input capacitor value is 10uF to 22uF, with an X5R or X7R dielectric type. This ensures stable operation and minimizes voltage ripple.
While the BU9796AMUV-E2 is rated for operation up to 125°C, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating and maintain reliability.
To troubleshoot issues, start by verifying the input voltage, current, and output voltage. Check for proper PCB layout, component placement, and thermal management. Use oscilloscopes or logic analyzers to monitor the device's behavior and identify potential issues. Consult ROHM's application notes and technical support resources for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU9796AMUV-E2 Overview

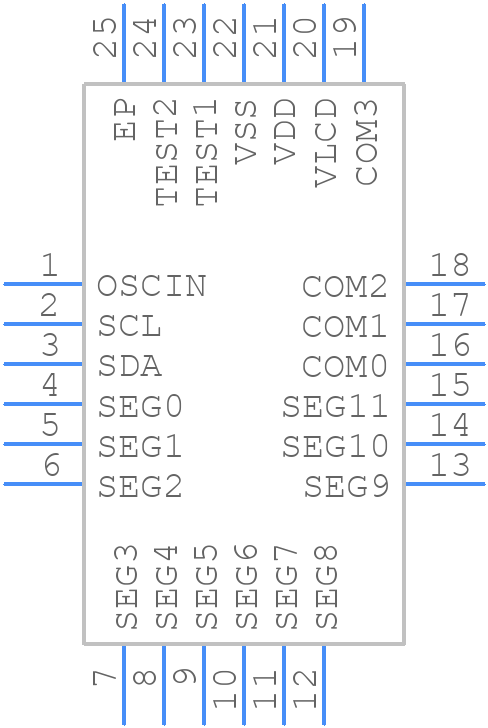

Use the download button to access the BU9796AMUV-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU979,
or try a keyword search, such as Display Drivers
