BU9873F-GTE2 - ROHM Semiconductor

Description: Real Time Clock

Download BU9873F-GTE2 Model
Schematic

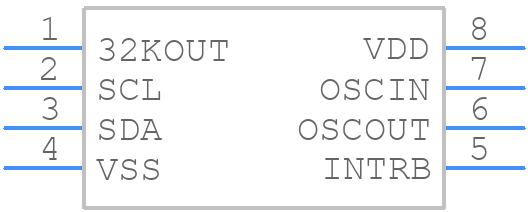

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BU9873F-GTE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP8
click to zoom
3D Models
BU9873F-GTE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP8
click to zoom

BU9873F-GTE2 Details

  • Manufacturer Part Number:

    BU9873F-GTE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Additional Feature:

    SEATED-HGT CALCULATED

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.71 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK
