BU9873FJ-GTE2 - ROHM Semiconductor

Description: Real Time Clock I2C BUS Serial Interface RTC with High-precision Oscillation Adjustment

Download BU9873FJ-GTE2 Model
Schematic

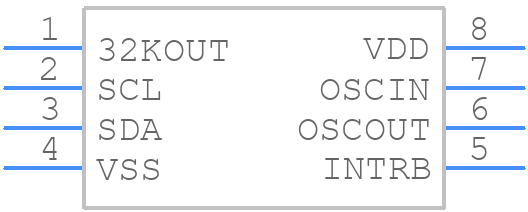

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

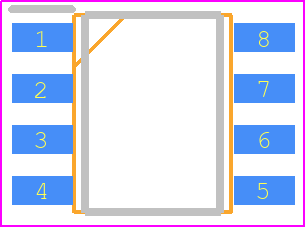

BU9873FJ-GTE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP-J8
click to zoom
3D Models
BU9873FJ-GTE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP-J8
click to zoom

BU9873FJ-GTE2 Details

  • Manufacturer Part Number:

    BU9873FJ-GTE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Additional Feature:

    SEATED-HGT CALCULATED

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

BU9873FJ-GTE2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Use a decoupling capacitor (e.g., 10uF) close to the device's power pins to filter out noise and ensure stable operation. Additionally, ensure the power supply voltage is within the recommended range (3.0V to 5.5V).
  • The maximum power dissipation is 1.5W. Ensure that the device is operated within this limit to prevent overheating and damage.
  • The BU9873FJ-GTE2 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper heat sinking and thermal management to maintain optimal performance.
  • Check the input voltage, output load, and decoupling capacitors. Verify that the device is properly configured and that the output voltage is within the recommended range (1.2V to 3.3V). Consult the datasheet and application notes for troubleshooting guidelines.
