- Part Number BU9873NUX-TTR
- Manufacturer ROHM Semiconductor
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - VSON008X2030_2
- Released Date May 29, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BU9873NUX-TTR Details
-
Manufacturer Part Number:
BU9873NUX-TTR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
ROHM Semiconductor
-
YTEOL:
0
-
Clock Frequency-Max:
0.032 MHz
-
Information Access Method:
SERIAL(I2C)
-
Supply Voltage-Max:
5.5 V
-
Supply Voltage-Min:
1.8 V
BU9873NUX-TTR Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the BU9873NUX-TTR is -40°C to 125°C.
-
To ensure the stability of the output voltage, it is recommended to use a ceramic capacitor with a capacitance value of 1uF or more for the output capacitor (COUT).
-
The maximum input voltage that the BU9873NUX-TTR can handle is 36V.
-
While the BU9873NUX-TTR can operate up to 125°C, it's recommended to derate the output current and input voltage to ensure reliable operation in high-temperature environments.
-
To reduce noise and ripple, it is recommended to use a low-ESR capacitor for the output capacitor (COUT) and to add a noise filter capacitor (CF) between the VIN and GND pins.
Trust Checks
Community Provided
System Verified
Community Approved
BU9873NUX-TTR Overview

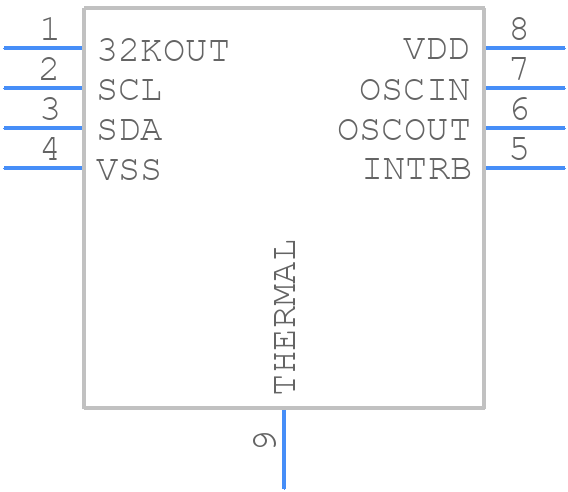

Use the download button to access the BU9873NUX-TTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU987,
or try a keyword search, such as Timers or RTCs
