BUK9535-55A,127 - Nexperia

BUK9535-55A,127 Details

• Manufacturer Part Number:

  BUK9535-55A,127

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TO-220

• Package Description:

  PLASTIC, SC-46, 3 PIN

• Pin Count:

  3

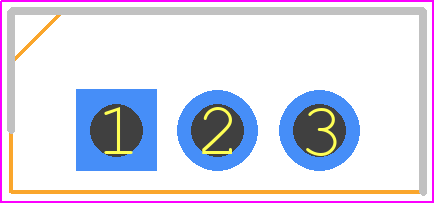

• Manufacturer Package Code:

  SOT78A

• ECCN Code:

  EAR99

• HTS Code:

  8541.29.00.75

• Date Of Intro:

  2017-02-01

• Manufacturer:

  Nexperia

• YTEOL:

  0

• Additional Feature:

  ESD PROTECTED

• Avalanche Energy Rating (Eas):

  49 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  55 V

• Drain Current-Max (ID):

  34 A

• Drain-source On Resistance-Max:

  0.038 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• JEDEC-95 Code:

  TO-220AB

• JESD-30 Code:

  R-PSFM-T3

• JESD-609 Code:

  e3

• Number of Elements:

  1

• Number of Terminals:

  3

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  85 W

• Pulsed Drain Current-Max (IDM):

  133 A

• Qualification Status:

  Not Qualified

• Surface Mount:

  NO

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
