BUK962R5-60E,118 - Nexperia

BUK962R5-60E,118 Details

• Manufacturer Part Number:

  BUK962R5-60E,118

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

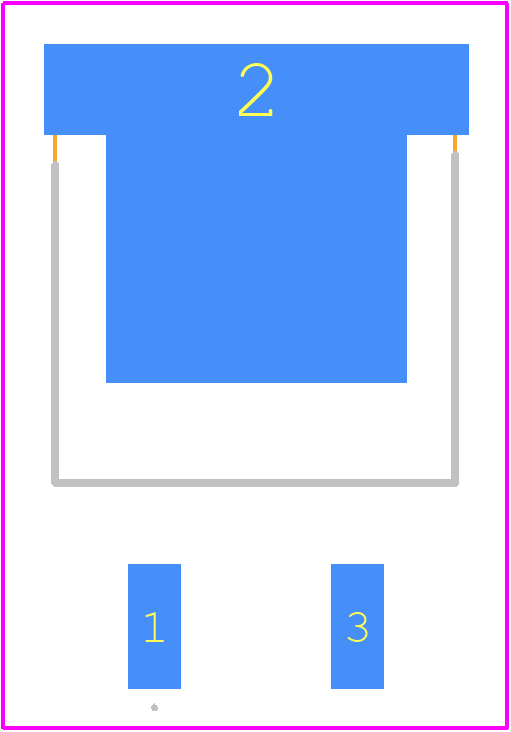

• Part Package Code:

  D2PAK

• Package Description:

  D2PAK-3/2

• Pin Count:

  3

• Manufacturer Package Code:

  SOT404

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Nexperia

• YTEOL:

  5.6

• Additional Feature:

  AVALANCHE RATED

• Avalanche Energy Rating (Eas):

  655 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  60 V

• Drain Current-Max (ID):

  120 A

• Drain-source On Resistance-Max:

  0.0025 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  770 pF

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR, 13 INCH

• Peak Reflow Temperature (Cel):

  245

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  349 W

• Pulsed Drain Current-Max (IDM):

  1019 A

• Reference Standard:

  AEC-Q101; IEC-60134

• Surface Mount:

  YES

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  40

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
