BUV28 - STMicroelectronics

Description: STMicroelectronics BUV28 NPN Bipolar Transistor, 10 A, 200 V, 3-Pin TO-220

Download BUV28 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BUV28 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

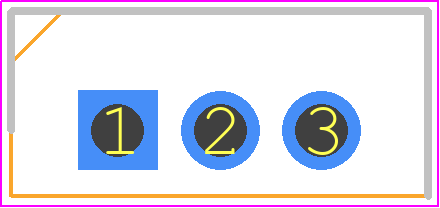

BUV28 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220_HEIGHT 4.60
click to zoom
3D Models
BUV28 - STMicroelectronics - 3D model - Transistor Outline, Vertical - TO-220_HEIGHT 4.60
click to zoom

BUV28 Details

  • Manufacturer Part Number:

    BUV28

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-220AB

  • Package Description:

    TO-220, 3 PIN

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Collector Current-Max (IC):

    10 A

  • Collector-Emitter Voltage-Max:

    200 V

  • Configuration:

    SINGLE

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    NPN

  • Power Dissipation Ambient-Max:

    85 W

  • Power Dissipation-Max (Abs):

    65 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    1750 ns

  • Turn-on Time-Max (ton):

    1000 ns

  • VCEsat-Max:

    1.5 V

BUV28 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN1071, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • To handle high voltage spikes, it is recommended to use a snubber circuit or a voltage clamp to limit the voltage peaks. Additionally, ensuring a low inductance layout and using a suitable PCB material can help reduce the voltage spikes.
  • The maximum allowable junction temperature for the BUV28 is 150°C. To ensure it stays within the safe operating range, it is recommended to use a heat sink, ensure good thermal conductivity between the device and the heat sink, and monitor the junction temperature using a thermocouple or thermal sensor.
  • Yes, the BUV28 is qualified for use in high-reliability and automotive applications. It meets the requirements of AEC-Q101 and is PPAP (Production Part Approval Process) certified. Additionally, STMicroelectronics provides a dedicated automotive grade version of the device, which is specifically designed for use in automotive applications.
  • To ensure EMC, it is recommended to follow good design practices such as using a shielded enclosure, minimizing loop areas, and using filtering components. Additionally, STMicroelectronics provides guidelines for EMC design in the application note AN1071.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BUV28 Overview

Use the download button to access the BUV28 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Other Transistors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
