BUX48 - STMicroelectronics

Description: TRANS NPN 400V 15A TO-3

Download BUX48 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BUX48 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

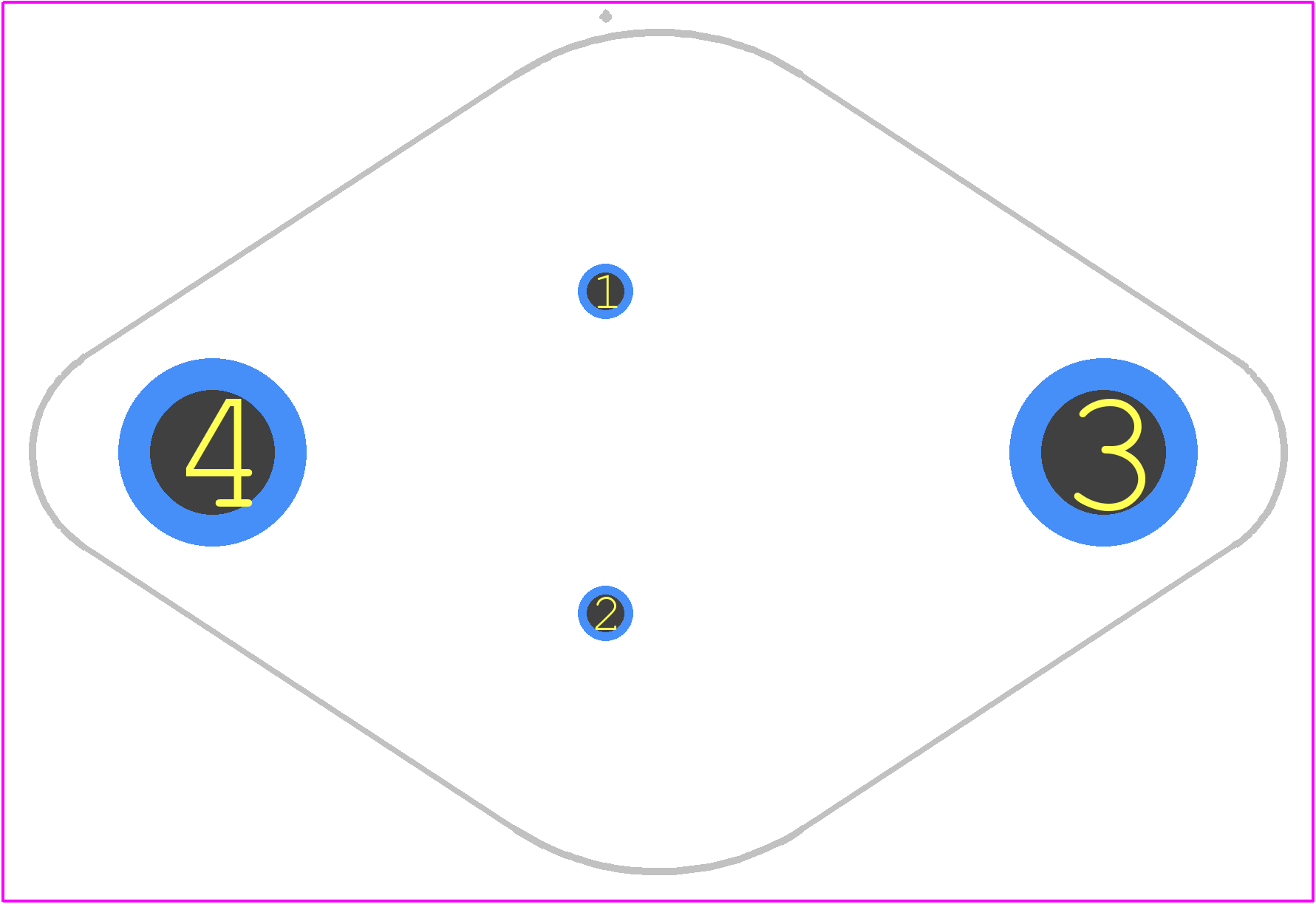

BUX48 - STMicroelectronics PCB footprint - Other - Other - BUX48-3
click to zoom
3D Models
BUX48 - STMicroelectronics - 3D model - Other - BUX48-3
click to zoom

BUX48 Details

  • Manufacturer Part Number:

    BUX48

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-204AA

  • Package Description:

    ROHS COMPLIANT PACKAGE-2

  • Pin Count:

    2

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    15 A

  • Collector-Emitter Voltage-Max:

    400 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    8

  • JEDEC-95 Code:

    TO-3

  • JESD-30 Code:

    O-MBFM-P2

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    NPN

  • Power Dissipation Ambient-Max:

    175 W

  • Power Dissipation-Max (Abs):

    175 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    5 MHz

  • Turn-off Time-Max (toff):

    3800 ns

  • Turn-on Time-Max (ton):

    1000 ns

  • VCEsat-Max:

    5 V

BUX48 Frequently Asked Questions (FAQs)

  • The BUX48 can operate from -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • To ensure proper biasing, connect the base to the emitter through a resistor (Rb) and the collector to the emitter through another resistor (Rc). The recommended values are Rb = 1 kΩ and Rc = 2.2 kΩ.
  • To minimize thermal resistance, use a thermal pad or a copper pour under the BUX48, and ensure good thermal conductivity between the device and the PCB. A thermal via or a thermal pad with a large copper area can help to dissipate heat efficiently.
  • Yes, the BUX48 can be used as a switch, but it's essential to consider the current and voltage ratings. The BUX48 is not designed for high-frequency switching applications, and the maximum switching frequency is around 100 kHz. Additionally, ensure the device is properly biased and the collector-emitter voltage (Vce) is within the recommended range.
  • To protect the BUX48 from ESD, use anti-static precautions during handling and storage. Use an anti-static wrist strap or mat, and ensure the PCB is designed with ESD protection in mind, such as using ESD protection diodes or resistors.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BUX48 Overview

Use the download button to access the BUX48 schematic symbol, PCB footprint, and 3D model.
