BUZ31L - Infineon

Description: MOSFET N-CH 200V 13.5A TO220-3

Download BUZ31L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

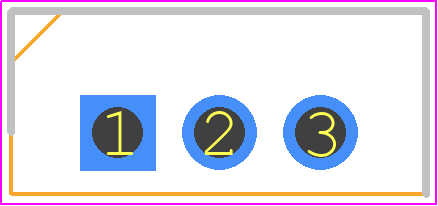

BUZ31L - Infineon PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO220-3
click to zoom
3D Models
BUZ31L - Infineon  - 3D model - Transistor Outline, Vertical - TO220-3
click to zoom

BUZ31L Details

  • Manufacturer Part Number:

    BUZ31L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-220AB

  • Package Description:

    GREEN, PLASTIC, TO-220, 3 PIN

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    AVALANCHE RATED

  • Avalanche Energy Rating (Eas):

    200 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    200 V

  • Drain Current-Max (ID):

    13.5 A

  • Drain-source On Resistance-Max:

    0.2 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    75 W

  • Pulsed Drain Current-Max (IDM):

    54 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
