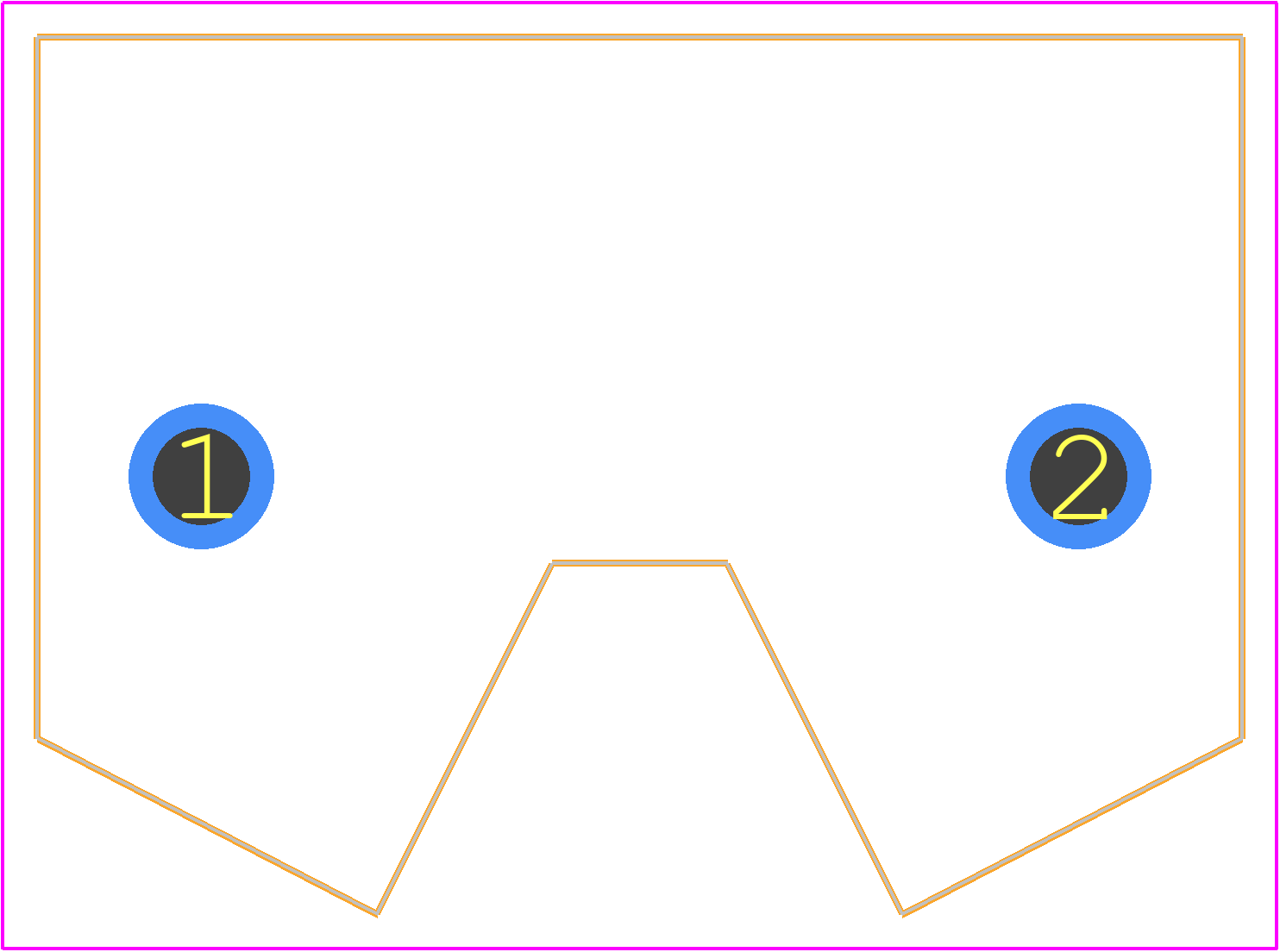

BW38-2G footprint, schematic symbol and 3D model by Aavid Thermalloy

Symbol

PCB Footprints

3D Models

BW38-2G Details

The recommended torque value is 0.5 Nm to 1.5 Nm, depending on the screw type and material used. It's essential to consult the manufacturer's guidelines or the datasheet for specific torque values.
Yes, the BW38-2G is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and securing of the device to prevent damage or malfunction.
The maximum operating temperature range for the BW38-2G is -40°C to 125°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
Yes, the BW38-2G is compatible with lead-free soldering processes. The device is designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives.
The recommended storage temperature range for the BW38-2G is -40°C to 30°C, and the recommended storage humidity range is 20% to 80% RH. It's essential to store the device in a dry, clean environment to prevent damage or degradation.

Expert Contribution

System Verified

Community Approved

Use the download button to access the BW38-2G schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BW38-, or try a keyword search, such as Heat Sinks
