- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for BX0034
- Part Number BX0034
- Manufacturer Bulgin
- Pin Count 2
- Part Category Undefined or Miscellaneous
- Package Category Other

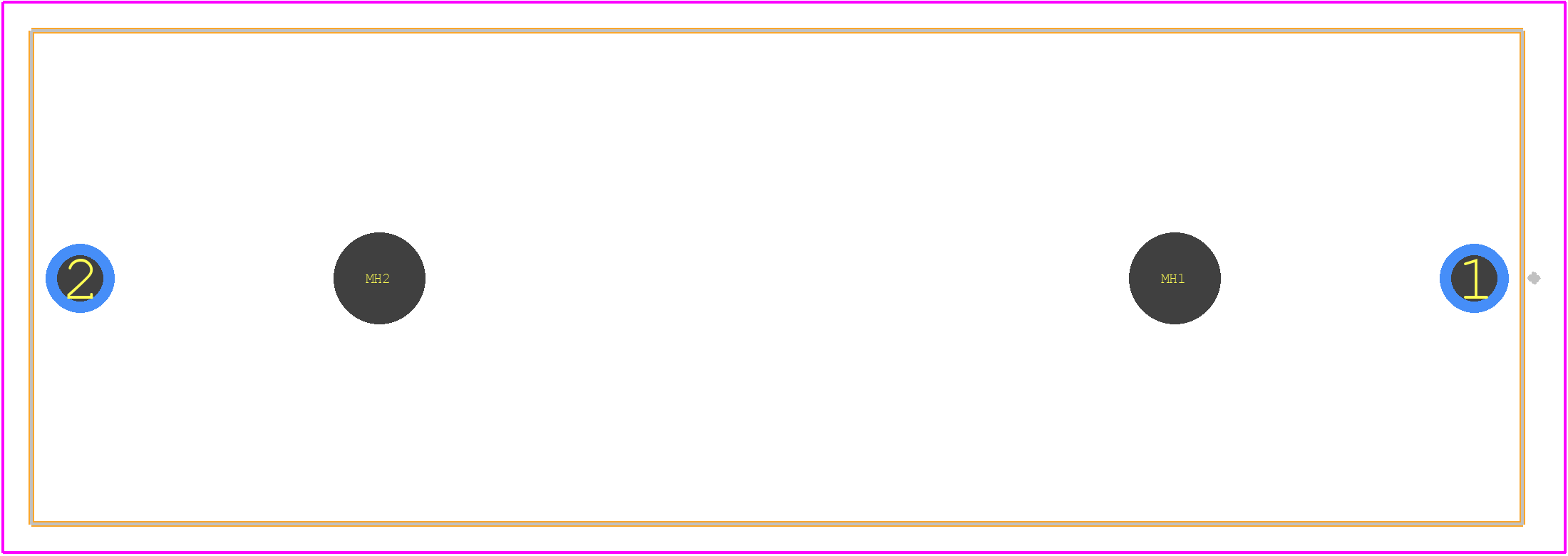

- Footprint Name Other - BX0034-2
- Released Date Dec 21, 2018
- Last Modified Date May 17, 2024 12:14 PM UTC
- Pinout / Pin List Click Here (Member Only)
BX0034 Details
-
Manufacturer Part Number:
BX0034
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Bulgin
-
Connector Type:
PCB CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Material:
NOT SPECIFIED
-
DIN Conformance:
NO
BX0034 Frequently Asked Questions (FAQs)
-
The recommended torque for the BX0034 connector is 0.5 Nm to 1.5 Nm (5-13 in-lbs).
-
Yes, the BX0034 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
-
Yes, the BX0034 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and construction equipment.
-
The operating temperature range of the BX0034 connector is -40°C to 125°C (-40°F to 257°F).
-
The BX0034 connector is designed to be compatible with other connectors that meet the IEC 61076-2-011 standard. However, compatibility should be verified before use.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
BX0034 Overview
Use the download button to access the BX0034 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BX003,
or try a keyword search, such as Headers and Edge Type Connectors
About Bulgin
Bulgin is a leading manufacturer of environmentally sealed connectors, fuse holders, and switches. They provide high-quality, ruggedized components for a wide range of industries, including industrial automation, transportation, marine, and outdoor electronics.
Bulgin offers a diverse range of products designed to withstand harsh environments and demanding applications. Their portfolio includes circular connectors, data connectors, power connectors, fuse holders, battery holders, switches, and more.
