- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for BX0036
- Part Number BX0036
- Manufacturer Bulgin
- Pin Count 4
- Part Category Battery
- Package Category Other

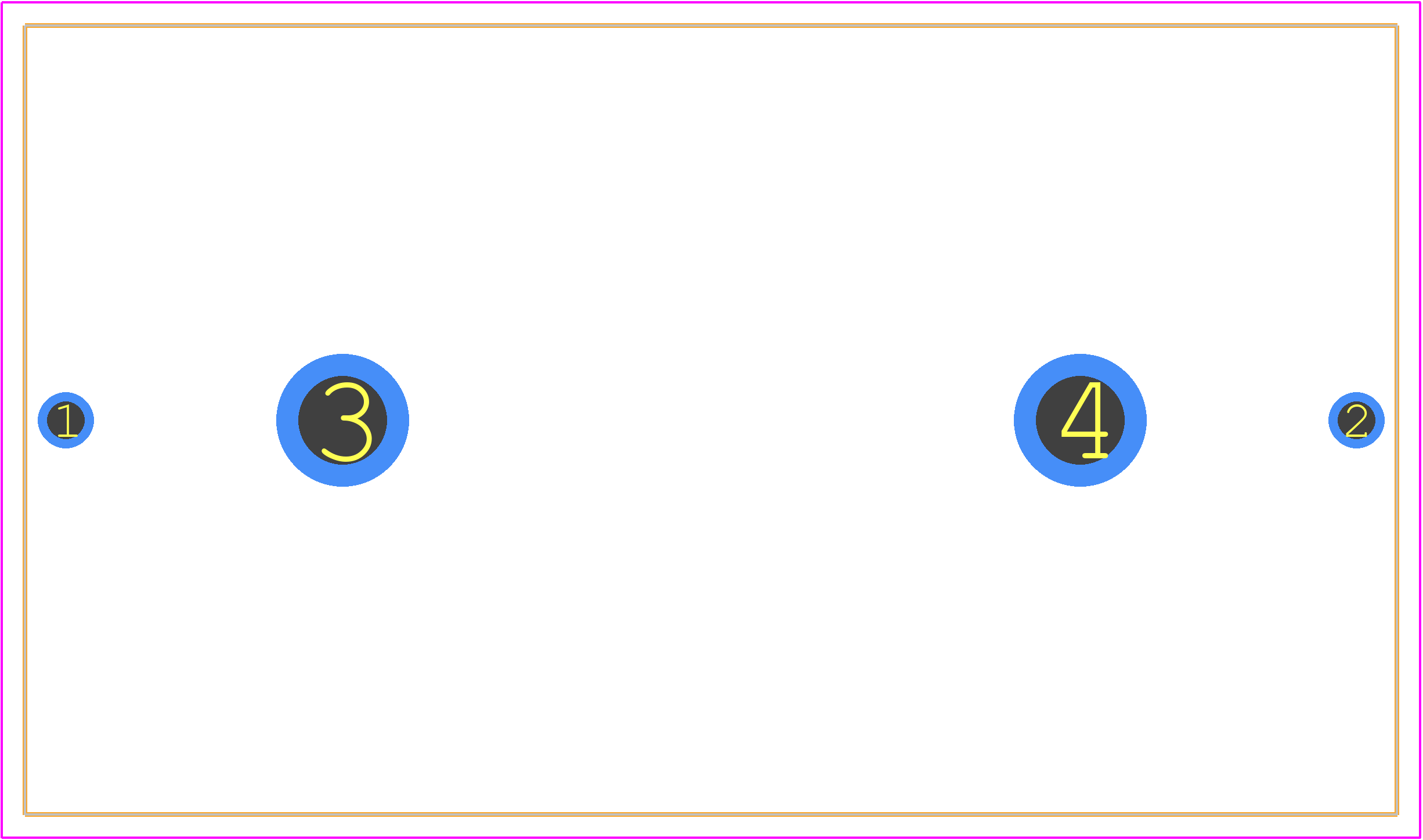

- Footprint Name Other - BX0036-1
- Released Date Nov 24, 2019
- Last Modified Date May 16, 2025 9:13 AM UTC
- Pinout / Pin List Click Here (Member Only)
BX0036 Details
-
Manufacturer Part Number:
BX0036
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Bulgin
-
Connector Type:
PCB CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Material:
NOT SPECIFIED
-
Operating Temperature-Max:
70 °C
-
Operating Temperature-Min:
-30 °C
BX0036 Frequently Asked Questions (FAQs)
-
The recommended torque for the BX0036 connector is 0.5 Nm to 1.5 Nm (5-13 in-lbs).
-
Yes, the BX0036 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
-
Yes, the BX0036 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and construction equipment.
-
The operating temperature range of the BX0036 connector is -40°C to 125°C (-40°F to 257°F).
-
The BX0036 connector is designed to be compatible with other connectors that meet the IEC 61076-2-011 standard. However, compatibility should be verified before use.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
BX0036 Overview
Use the download button to access the BX0036 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BX003,
or try a keyword search, such as Headers and Edge Type Connectors
