The recommended land pattern for the BZX84B12VLYFHT116 can be found in the ROHM Semiconductor's packaging specification document, which is usually available on their website. The document provides detailed information on the recommended pad layout, solder mask, and soldering conditions.
The BZX84B12VLYFHT116 is an ESD-sensitive device, and proper handling and storage procedures should be followed to prevent damage. This includes using anti-static wrist straps, mats, and bags, as well as avoiding direct contact with the device's pins. Additionally, the device should be stored in a dry, cool place, away from direct sunlight.
The maximum surge current that the BZX84B12VLYFHT116 can withstand is not explicitly stated in the datasheet. However, ROHM Semiconductor provides a separate document that outlines the device's surge current capability. According to this document, the BZX84B12VLYFHT116 can withstand a surge current of up to 10A for a duration of 1ms.
The BZX84B12VLYFHT116 is rated for operation up to 150°C, but its performance may degrade at higher temperatures. If you need to use the device in a high-temperature environment, you should consult with ROHM Semiconductor's application engineers to determine the device's suitability for your specific application.
The optimal bias voltage for the BZX84B12VLYFHT116 depends on the specific application and the desired level of voltage regulation. A general rule of thumb is to bias the device at a voltage that is at least 1V above the desired output voltage. However, it's recommended to consult with ROHM Semiconductor's application engineers or refer to their application notes for more specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BZX84B12VLYFHT116 Overview

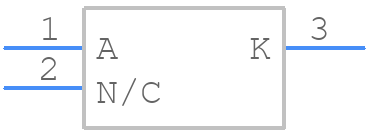

Use the download button to access the BZX84B12VLYFHT116 schematic symbol, PCB footprint, and 3D model.
