BZX84C12-13P - MCC

Description: 350 mWatt Zener Diodes 2.4 to 75 Volts,350mW,2.4V - 75V-55°C to +150°C,2.0A

Download BZX84C12-13P Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BZX84C12-13P model

Email notifications will be applied after download.

Send part feedback

Symbol

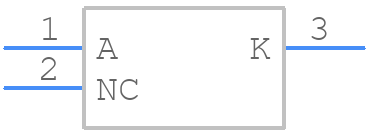

BZX84C12-13P - MCC - PCB symbol

PCB Footprints

BZX84C12-13P - MCC PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT-23_2023-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for BZX84C12-13P
Part Number BZX84C12-13P
Manufacturer MCC
Pin Count 3
Part Category Zener Diode
Package Category SOT23 (3-Pin)
Footprint Name SOT23 (3-Pin) - SOT-23_2023-3
Released Date Aug 16, 2026
Last Modified Date Aug 16, 2026 10:49 AM UTC
Pinout / Pin List Click Here (Member Only)

BZX84C12-13P Details

Manufacturer Part Number:
BZX84C12-13P
Manufacturer:
Micro Commercial Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

BZX84C12-13P Overview

Use the download button to access the BZX84C12-13P schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BZX84, or try a keyword search, such as Zener Diodes
