BZX84C39-E3-08 - Vishay

Description: Zener Diodes 39 Volt 0.35W 5%

Download BZX84C39-E3-08 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

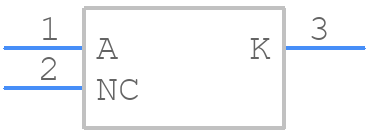

BZX84C39-E3-08 - Vishay - PCB symbol
click to zoom
PCB Footprints
BZX84C39-E3-08 - Vishay PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - BZX84C39-E3-08
click to zoom
3D Models
BZX84C39-E3-08 - Vishay - 3D model - SOT23 (3-Pin) - BZX84C39-E3-08
click to zoom

BZX84C39-E3-08 Details

  • Manufacturer Part Number:

    BZX84C39-E3-08

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.65

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    ZENER DIODE

  • Dynamic Impedance-Max:

    130 Ω

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Knee Impedance-Max:

    350 Ω

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    0.5 W

  • Reference Voltage-Nom:

    39 V

  • Reverse Current-Max:

    0.05 µA

  • Reverse Test Voltage:

    27.3 V

  • Surface Mount:

    YES

  • Technology:

    ZENER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Temp Coeff-Max:

    1.2 mV/°C

  • Voltage Tol-Max:

    5%

  • Working Test Current:

    2 mA

BZX84C39-E3-08 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the BZX84C39-E3-08 can be found in the Vishay Intertechnologies' application note AN10365, which provides guidelines for surface mount assembly of diodes and rectifiers.
  • To prevent damage during soldering, it is recommended to follow the soldering profile recommended in the datasheet, and to use a soldering iron with a temperature of 260°C (500°F) or less. Additionally, the component should be soldered within 10 seconds to prevent overheating.
  • Yes, the BZX84C39-E3-08 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the requirements of AEC-Q101, a standard for automotive-grade components.
  • The BZX84C39-E3-08 has a cathode band on the component marking, which indicates the cathode (negative) leg of the diode. The anode (positive) leg is the other leg of the diode.
  • The BZX84C39-E3-08 has a moisture sensitivity level (MSL) of 1, which means that it can be exposed to a relative humidity of 85% or less at 30°C (86°F) for up to 168 hours without being damaged.
