BZX84C3V3-T1 - Rectron

Description: Zener Diodes 3.3V

Download BZX84C3V3-T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

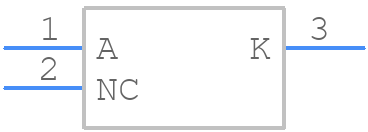

BZX84C3V3-T1 - Rectron - PCB symbol
click to zoom
PCB Footprints
BZX84C3V3-T1 - Rectron PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - BZX84C3V3-T1
click to zoom

BZX84C3V3-T1 Details

  • Manufacturer Part Number:

    BZX84C3V3-T1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Package Description:

    SOT-23, 3 PIN

  • Pin Count:

    3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Rectron Semiconductor

  • YTEOL:

    6.95

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    ZENER DIODE

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    0.3 W

  • Qualification Status:

    Not Qualified

  • Reference Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ZENER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Voltage Tol-Max:

    6.061%

  • Working Test Current:

    5 mA

BZX84C3V3-T1 Frequently Asked Questions (FAQs)

  • The recommended footprint for the BZX84C3V3-T1 is a standard SOD-123 package with a pad size of 0.8mm x 0.8mm and a spacing of 0.5mm between pads.
  • The BZX84C3V3-T1 has a maximum operating temperature of 150°C, but it's recommended to derate the voltage and current ratings above 125°C to ensure reliable operation.
  • The BZX84C3V3-T1 is an ESD-sensitive device, so it's recommended to handle it with ESD-protective equipment, such as wrist straps, mats, and bags, to prevent damage.
  • The BZX84C3V3-T1 is a general-purpose diode, not optimized for high-frequency applications. For high-frequency use, consider a diode with a lower capacitance and inductance, such as a Schottky diode.
  • Store the BZX84C3V3-T1 in a dry, cool place with a temperature range of -40°C to 30°C and humidity below 60%. Avoid exposing it to direct sunlight, moisture, or extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BZX84C3V3-T1 Overview

Use the download button to access the BZX84C3V3-T1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like BZX84, or try a keyword search, such as Zener Diodes
