The recommended land pattern for the C0409J5003AHF can be found in the Anaren Microwave application note AN-1121, which provides guidelines for surface mount assembly and layout considerations.
To prevent damage, handle the C0409J5003AHF by the edges, avoid touching the component's surface, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD).
The maximum power rating for the C0409J5003AHF is 50 W, but it's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors.
The C0409J5003AHF is rated for operation up to 125°C, but it's crucial to consider the component's power derating and thermal management to ensure reliable operation in high-temperature environments.
To troubleshoot issues with the C0409J5003AHF, check for proper soldering, ensure correct component orientation, and verify that the component is not damaged or counterfeit. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
C0409J5003AHF Overview

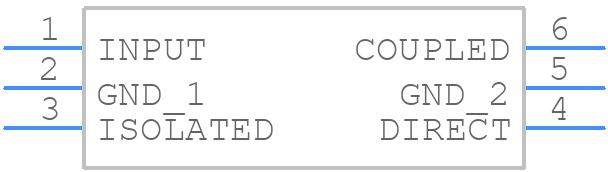

Use the download button to access the C0409J5003AHF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C0409,
or try a keyword search, such as RF/Microwave Couplers
