- Part Number C1061-AL
- Manufacturer COILCRAFT
- Pin Count 12
- Part Category Filter
- Package Category Other

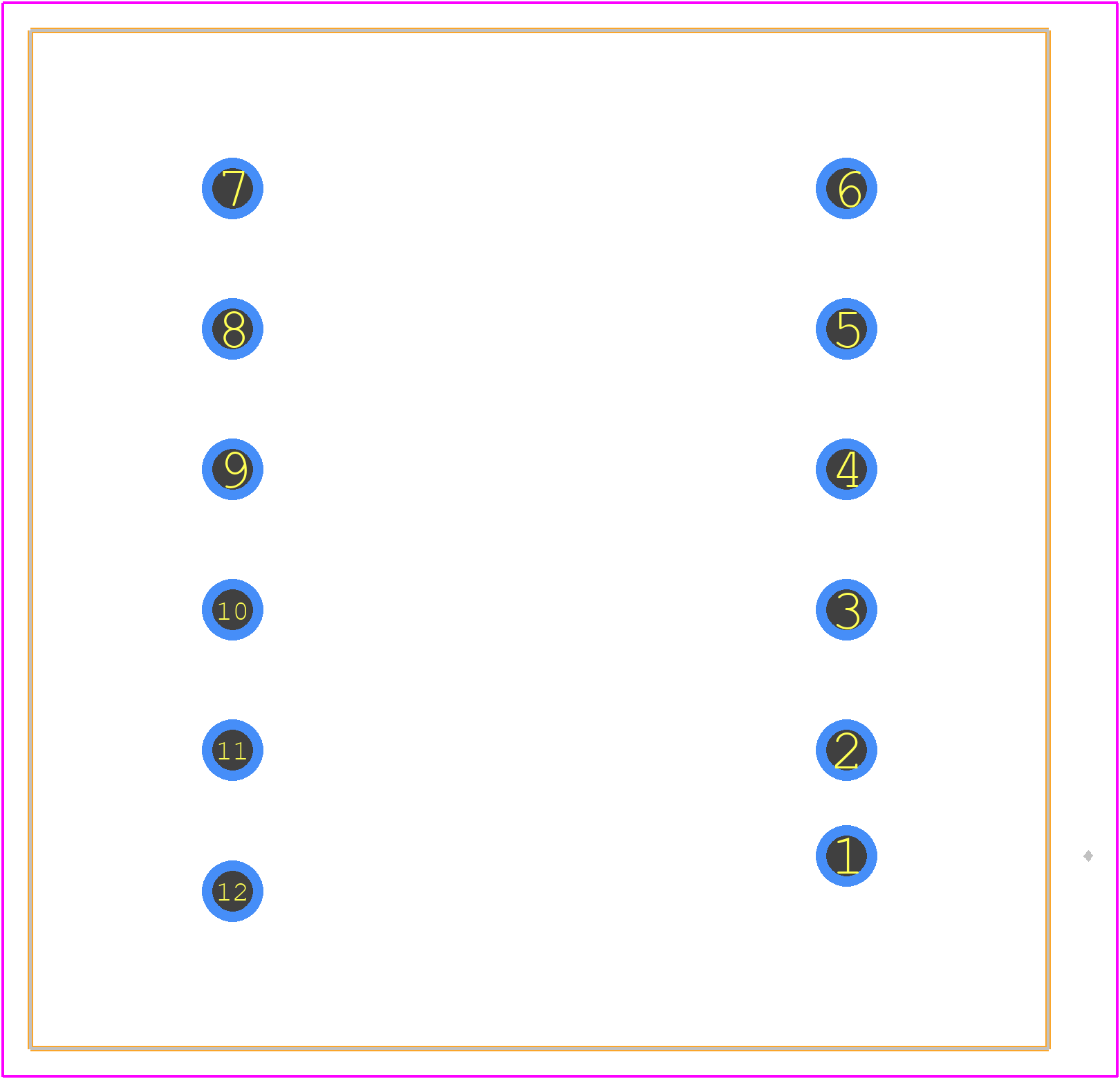

- Footprint Name Other - C1061-AL-1
- Released Date May 8, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
C1061-AL Details
-
Manufacturer Part Number:
C1061-AL
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
6.7
-
Construction:
Coil
-
DC Resistance:
0.166 Ω
C1061-AL Frequently Asked Questions (FAQs)
-
Coilcraft recommends a land pattern with a minimum pad size of 1.3 mm x 1.3 mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
-
The C1061-AL is rated for operation up to 125°C, but it's recommended to derate the current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation. Consult Coilcraft's application notes for more information.
-
Handle the C1061-AL by the body only, avoiding touching the leads or core. Use a vacuum pickup or tweezers to place the component on the PCB. Avoid bending or flexing the leads during assembly.
-
Coilcraft recommends a soldering profile with a peak temperature of 240°C to 250°C, a dwell time of 1-2 seconds, and a ramp rate of 1-2°C per second. Consult Coilcraft's application notes for more information.
-
The C1061-AL is designed to withstand moderate vibration, but it's recommended to secure the component to the PCB using a suitable adhesive or mechanical fastening method to prevent movement and ensure reliable operation.
Trust Checks
Expert Contribution
System Verified
Community Approved
C1061-AL Overview
Use the download button to access the C1061-AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C1061,
or try a keyword search, such as Fixed Inductors
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
