C12 - XP POWER

Description: XP POWER - C12 - High Voltage 0 V to +1250 V , C Series, 1 W, 0 V, 1.25 kV, 1 mA, Positive Output , 200-250kHz

Download C12 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this C12 model

Email notifications will be applied after download.

Send part feedback

Symbol

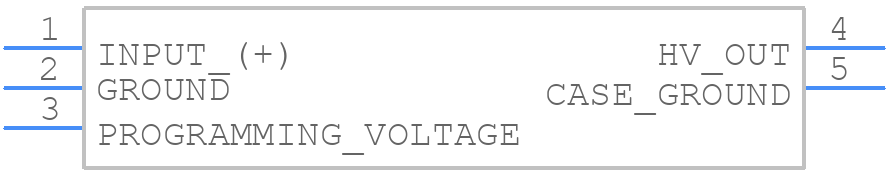

C12 - XP POWER - PCB symbol

PCB Footprints

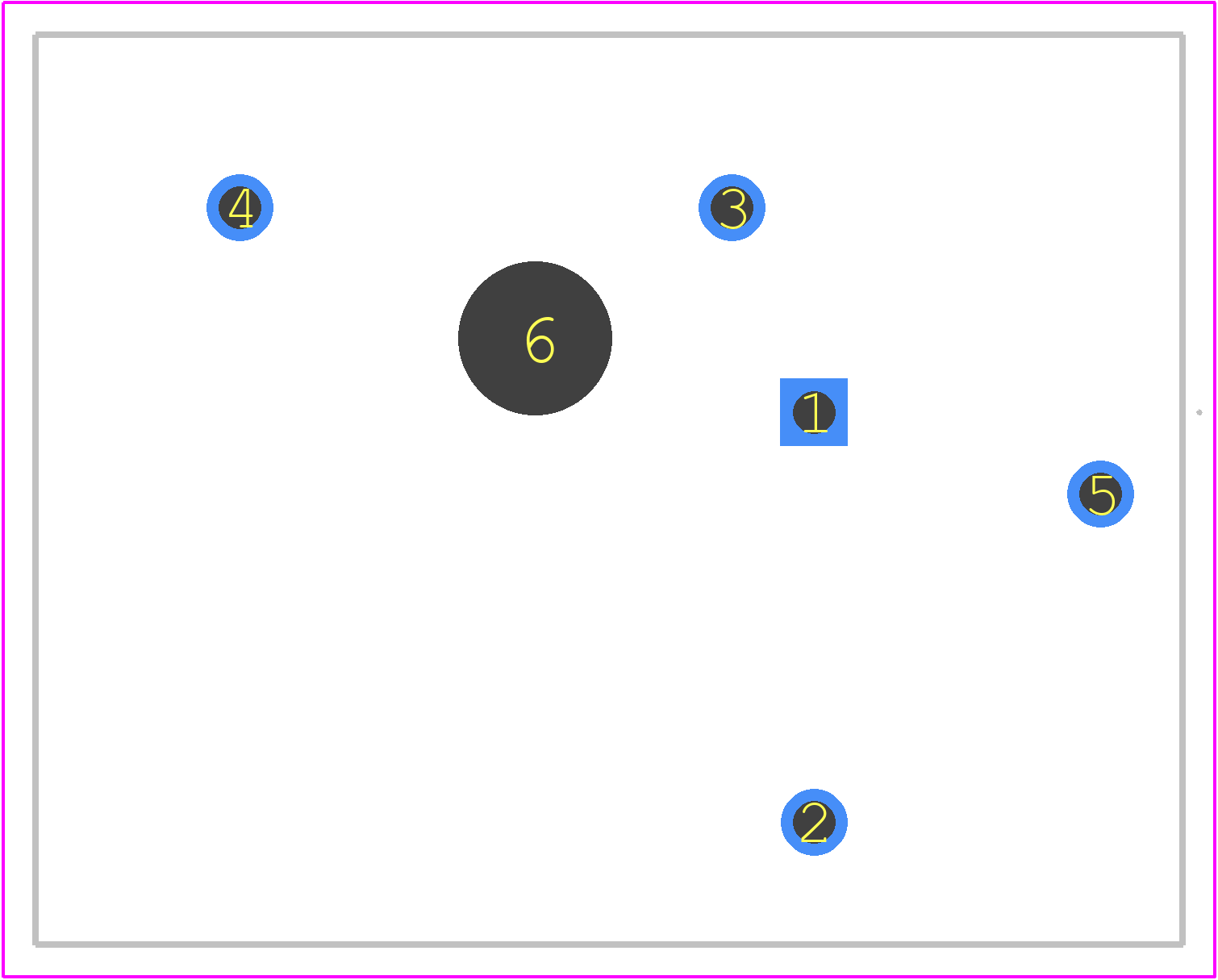

C12 - XP POWER PCB footprint - Other - Other - 35.56mmX28.19mm_2026

3D Models

C12 - XP POWER - 3D model - Other - 35.56mmX28.19mm_2026

Datasheet Download Datasheet
Stock & Prices Price & Stock for C12
Part Number C12
Manufacturer XP POWER
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - 35.56mmX28.19mm_2026
Released Date May 7, 2026
Last Modified Date May 8, 2026 2:32 PM UTC
Pinout / Pin List Click Here (Member Only)

C12 Details

Manufacturer Part Number:
C12
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
16 V
Input Voltage-Min:
11.5 V
JESD-30 Code:
R-XXMA-P6
Length:
35.56 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-10 °C
Output Voltage-Max:
1250 V
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
13.21 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
COMMERCIAL
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
1 W
Trim/Adjustable Output:
YES
Width:
28.19 mm

C12 Frequently Asked Questions (FAQs)

The maximum capacitance tolerance for the C12 series is ±20%.
Yes, the C12 series is designed to withstand high-vibration environments, with a vibration test specification of 10-2000 Hz, 10G peak acceleration.
XP Power recommends derating the output power of the C12 series by 2.5% per degree Celsius above 50°C to ensure reliable operation.
Yes, the C12 series modules have a 1500VDC isolation voltage between the input and output, making them suitable for use in isolated power systems.
Yes, multiple C12 series modules can be paralleled to increase output power, but it is recommended to consult with XP Power's application engineers to ensure proper configuration and thermal management.
