C142R2JL - TE Connectivity

Description: Body Features: Lead Type Axial-Leaded | Configuration Features: Number of Resistors 1 | Dimensions: Passive Component Dimensions 53.3 x 8.5 MM | Electrical Characteristics: Resistance Value 2.2 OHM | Resistance Class Up to 1kΩ | Operating Voltage 650 V | Power Rating 14 WATT | Passive Component Tolerance 5 PCT | Packaging Features: Packaging Method Loose Piece - Tray | Product Type Features: Resistor Type Power Resistor | Element Type Wire Wound | Termination Features: Termination Area Base Material Copper

Download C142R2JL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
C142R2JL - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

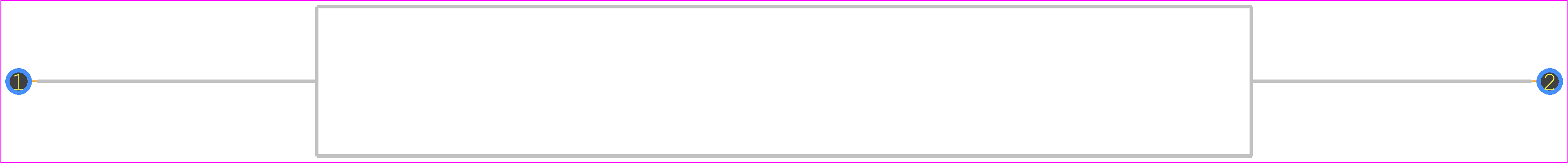

C142R2JL - TE Connectivity PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - C14 Series 14W, Axial
click to zoom

C142R2JL Details

  • Manufacturer Part Number:

    C142R2JL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.80

  • Factory Lead Time:

    22 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Package Shape:

    TUBULAR PACKAGE

  • Packing Method:

    BULK; TRAY

  • Physical Dimension:

    53.3mm x 8.5mm

  • Rated Power Dissipation (P):

    14 W

  • Resistance:

    2.2 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    90 ppm/°C

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    650 V

C142R2JL Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for C142R2JL is between 230°C to 250°C, with a maximum exposure time of 3 seconds.
  • Yes, C142R2JL is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The maximum operating voltage for C142R2JL is 50V, with a maximum surge voltage of 100V.
  • C142R2JL has a maximum operating temperature of 125°C, making it suitable for high-temperature applications, but it's essential to ensure the component is properly derated to prevent overheating.
  • C142R2JL has a moisture sensitivity level (MSL) of 1, indicating it is resistant to moisture and humidity, but it's still essential to follow proper storage and handling procedures to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

C142R2JL Overview

Use the download button to access the C142R2JL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like C142R, or try a keyword search, such as Wire Wound Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
