The recommended land pattern for the C1517J5003AHF can be found in the Anaren Microwave application note AN-112, which provides guidelines for surface mount assembly and layout considerations.
To prevent damage, handle the C1517J5003AHF by the package body only, avoiding touching the leads or the ceramic body. Use anti-static wrist straps and mats to prevent electrostatic discharge damage.
The maximum storage temperature for the C1517J5003AHF is +25°C to +30°C, with a relative humidity of 20% to 80%. Storage outside these conditions may affect the component's reliability and performance.
No, the C1517J5003AHF is not designed for hermetically sealed environments. It is intended for use in surface mount applications with a controlled atmosphere.
The thermal resistance of the C1517J5003AHF is not explicitly stated in the datasheet. However, Anaren Microwave recommends using a thermal model or consulting with their application engineers to determine the thermal resistance for specific applications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
C1517J5003AHF Overview

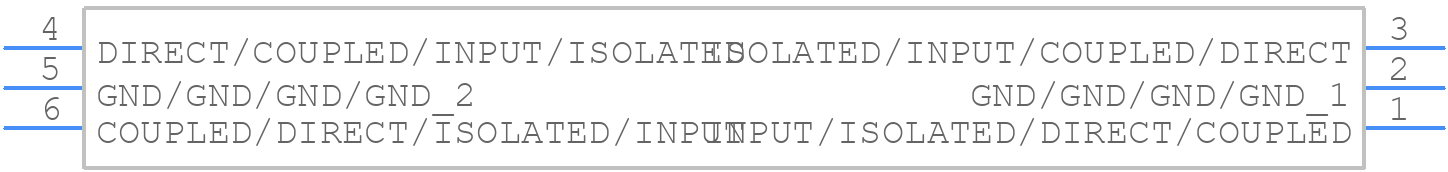

Use the download button to access the C1517J5003AHF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C1517,
or try a keyword search, such as RF/Microwave Couplers
