C1586-ALD - COILCRAFT

Description: Audio Transformers / Signal Transformers C1586 TI LM5070 13uH 12 V 1.08 A

Download C1586-ALD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

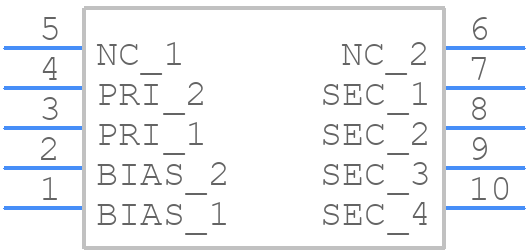

Symbol
C1586-ALD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
C1586-ALD - COILCRAFT PCB footprint - Other - Other - C1586-ALD-1
click to zoom
3D Models
C1586-ALD - COILCRAFT - 3D model - Other - C1586-ALD-1
click to zoom

C1586-ALD Details

  • Manufacturer Part Number:

    C1586-ALD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.25

  • Height:

    12.7 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • Length:

    13.46 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    250 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    12 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    13 W

  • Primary Inductance:

    127 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Matte Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    13 mm

C1586-ALD Frequently Asked Questions (FAQs)

  • The recommended land pattern for the C1586-ALD is a rectangular pad with a size of 3.8 mm x 2.3 mm, with a non-solder mask defined (NSMD) pad shape.
  • The C1586-ALD's inductance value can vary with temperature. To minimize this effect, use a temperature-stable core material, and consider using a shielded inductor to reduce electromagnetic interference (EMI).
  • The maximum current rating for the C1586-ALD is 2.3 A, but this can vary depending on the operating frequency and temperature. Always check the datasheet and perform thermal analysis to ensure safe operation.
  • Yes, the C1586-ALD is suitable for high-frequency applications up to 1 GHz. However, be aware of the inductor's self-resonant frequency (SRF) and ensure it does not interfere with your operating frequency.
  • To minimize radiated emissions, use a shielded inductor, keep the inductor away from sensitive components, and use a ground plane to reduce electromagnetic radiation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

C1586-ALD Overview

Use the download button to access the C1586-ALD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C1586, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
