C1720J5003AHF - ANAREN

Description: RF Directional Coupler DCS, PCS, WCDMA 1.7GHz ~ 2GHz 3dB 4W 0805 (2012 Metric) , 50Ω , -55ºC +140ºC

Download C1720J5003AHF Model

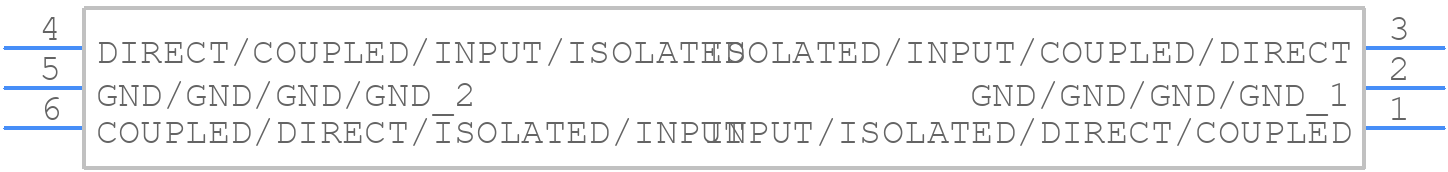

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
C1720J5003AHF - ANAREN PCB footprint - Other - Other - 2.04mm x 1.29mm x 0.70mm
click to zoom
3D Models
C1720J5003AHF - ANAREN  - 3D model - Other - 2.04mm x 1.29mm x 0.70mm
click to zoom

C1720J5003AHF Details

  • Manufacturer Part Number:

    C1720J5003AHF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT, MINIATURE, SURFACE MOUNT PACKAGE-6

  • Manufacturer:

    Anaren Microwave

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36.02 dBm

  • Insertion Loss-Max:

    0.4 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    1700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    90 DEGREE HYBRID COUPLER

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

C1720J5003AHF Frequently Asked Questions (FAQs)

  • The recommended land pattern for the C1720J5003AHF can be found in the Anaren Microwave application note AN-112, which provides guidelines for PCB layout and assembly.
  • To handle the ESD sensitivity of the C1720J5003AHF, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
  • The thermal resistance of the C1720J5003AHF is not explicitly stated in the datasheet, but it can be estimated to be around 10-15°C/W, depending on the PCB design and thermal management.
  • Yes, the C1720J5003AHF is suitable for high-reliability applications, as it is designed and manufactured to meet the requirements of aerospace and defense industries.
  • To troubleshoot issues with the C1720J5003AHF, it is recommended to follow a systematic approach, checking for proper PCB design, component placement, and soldering, as well as verifying the input and output signals.
