The recommended operating temperature range for the C238S is -40°C to +85°C, with a storage temperature range of -40°C to +125°C.
To avoid overheating, ensure the relay is driven with a voltage between 5V and 15V, and a current of 10mA to 50mA. Also, use a suitable driver circuit to limit the current and voltage to the relay coil.
The maximum switching frequency for the C238S is 100 Hz, although it's recommended to operate at a frequency of 10 Hz or less for optimal performance and relay life.
Yes, the C238S is designed to operate in high-vibration environments, with a vibration resistance of 10G peak acceleration, 10-2000 Hz frequency range.
To prevent electrostatic discharge (ESD) damage, handle the C238S with ESD-protective equipment, such as wrist straps, mats, and bags. Also, ensure the relay is stored in its original packaging or an ESD-protective container when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
C238S Overview

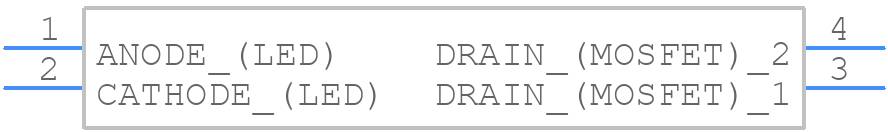

Use the download button to access the C238S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Solid State Relays
