C264-085-3AE footprint, schematic symbol and 3D model by Ohmite

Symbol

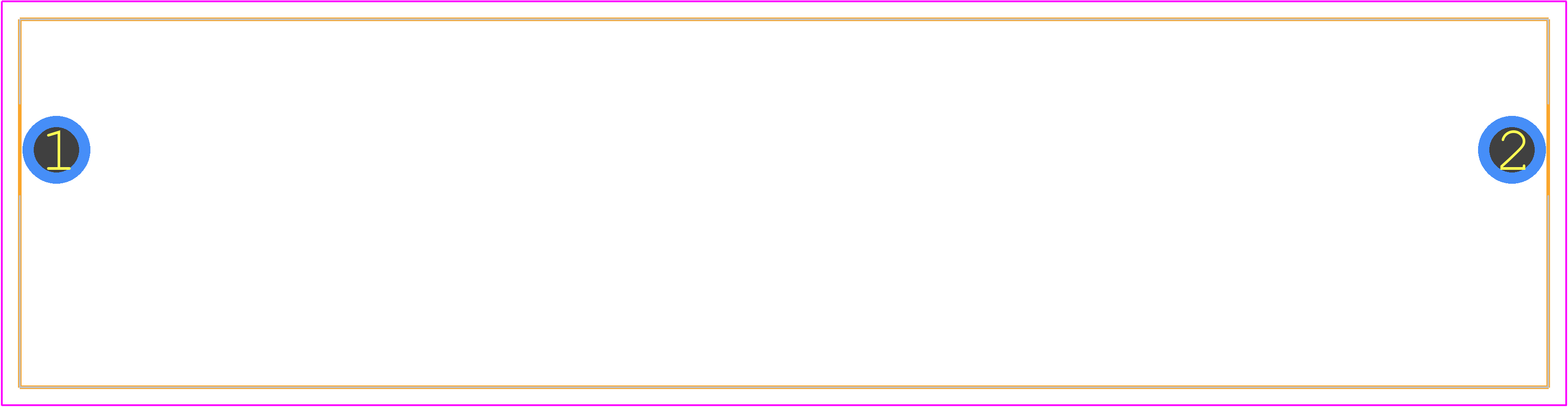

PCB Footprints

3D Models

C264-085-3AE Details

The thermal resistance of the C264-085-3AE is typically around 1.5°C/W, but this value can vary depending on the specific application and mounting method.
Yes, the C264-085-3AE is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
The recommended torque for mounting the C264-085-3AE is typically around 10-15 in-lbs (1.1-1.7 Nm), but this value may vary depending on the specific application and mounting method.
Yes, the C264-085-3AE is designed to withstand high-vibration environments, but it's recommended to consult with Ohmite Mfg Co or a qualified engineer to ensure the component meets the specific vibration requirements of the application.
The C264-085-3AE has a maximum operating temperature of 250°C, making it suitable for use in high-temperature environments. However, it's recommended to consult with Ohmite Mfg Co or a qualified engineer to ensure the component meets the specific temperature requirements of the application.

Expert Contribution

System Verified

Community Approved

Use the download button to access the C264-085-3AE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like C264-, or try a keyword search, such as Heat Sinks
