C30659-1550-R08BH - Excelitas Technologies

Description: Photodiode 1550nm 2ns TO-8 Style, 12 Leads 1100nm ~ 1700nm 80 KV/W 2ns Through Hole -40°C ~ 70°C

Download C30659-1550-R08BH Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this C30659-1550-R08BH model

Email notifications will be applied after download.

Send part feedback

Symbol

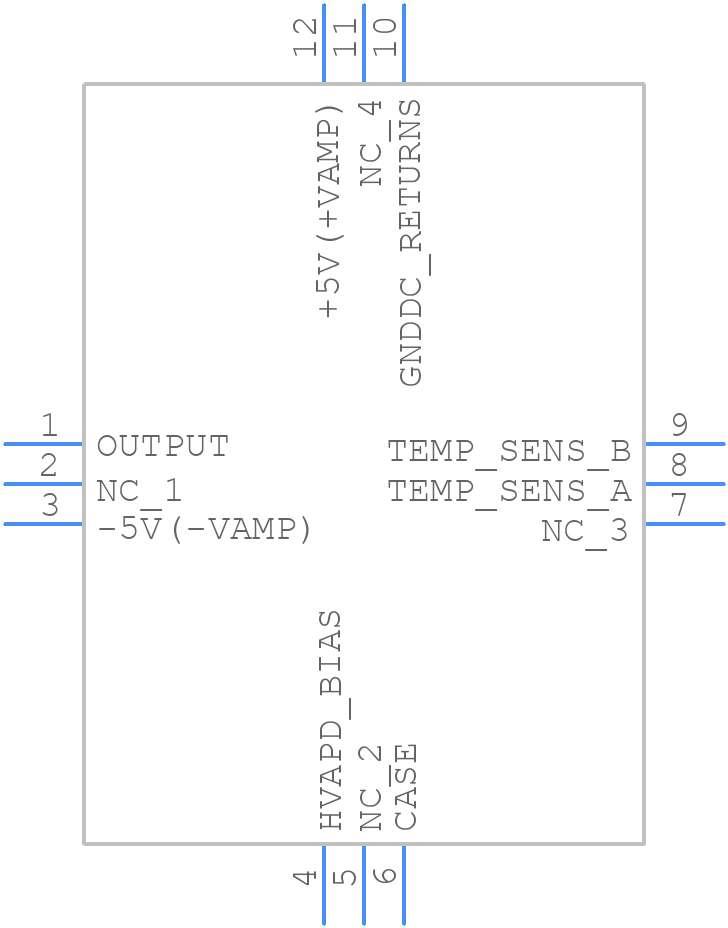

C30659-1550-R08BH - Excelitas Technologies - PCB symbol

PCB Footprints

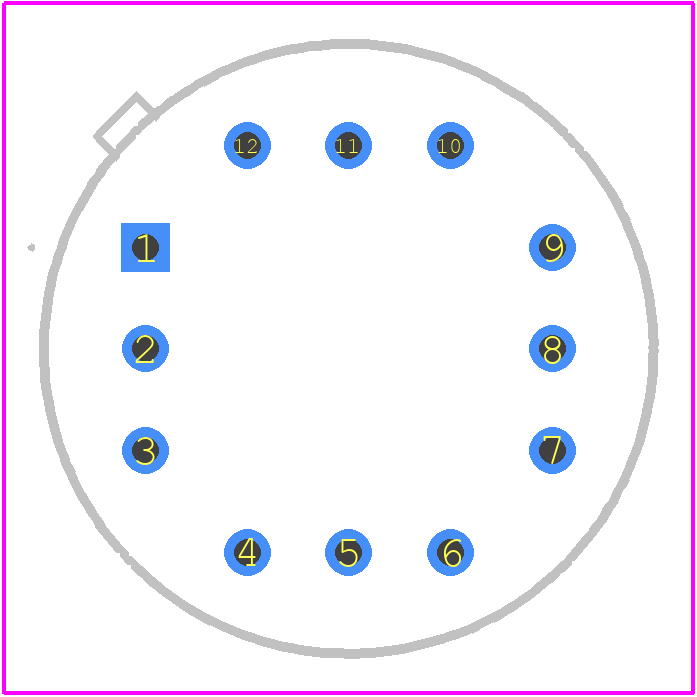

C30659-1550-R08BH - Excelitas Technologies PCB footprint - Other - Other - TO-8

Datasheet Download Datasheet
Stock & Prices Price & Stock for C30659-1550-R08BH
Part Number C30659-1550-R08BH
Manufacturer Excelitas Technologies
Pin Count 12
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - TO-8
Released Date Jun 30, 2025
Last Modified Date Dec 4, 2025 1:05 AM UTC
Pinout / Pin List Click Here (Member Only)

C30659-1550-R08BH Details

Manufacturer Part Number:
C30659-1550-R08BH
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.49.80.00
Manufacturer:
Excelitas Technologies Corporation
Optoelectronic Device Type:
AVALANCHE PHOTODIODE
