C3337J5003AHF - ANAREN

Description: Signal Conditioning 3.3-3.7GHz IL-=1.0dB 3dB 90 Deg.

Download C3337J5003AHF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

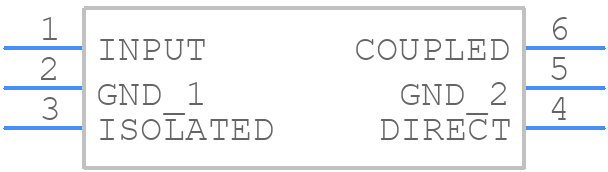

Symbol
C3337J5003AHF - ANAREN - PCB symbol
click to zoom
PCB Footprints
C3337J5003AHF - ANAREN PCB footprint - Other - Other - C3337J5003AHF-1
click to zoom
3D Models
C3337J5003AHF - ANAREN - 3D model - Other - C3337J5003AHF-1
click to zoom

C3337J5003AHF Details

  • Manufacturer Part Number:

    C3337J5003AHF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINIATURE, SURFACE MOUNT PACKAGE-6

  • Manufacturer:

    Anaren Microwave

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36.02 dBm

  • Insertion Loss-Max:

    0.3 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    3700 MHz

  • Operating Frequency-Min:

    3300 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    90 DEGREE HYBRID COUPLER

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

C3337J5003AHF Frequently Asked Questions (FAQs)

  • The recommended land pattern for the C3337J5003AHF can be found in the Anaren Microwave application note AN-112, which provides guidelines for PCB layout and assembly.
  • The C3337J5003AHF has a thermal resistance of 25°C/W, and it is recommended to use a thermal pad or heat sink to dissipate heat. A thermal interface material (TIM) can also be used to improve heat transfer.
  • The maximum operating temperature of the C3337J5003AHF is 125°C, and it is recommended to operate the device within the specified temperature range to ensure reliable performance.
  • Yes, the C3337J5003AHF is designed for high-reliability applications and is qualified to MIL-PRF-38534 standards. However, it is recommended to consult with Anaren Microwave for specific requirements and testing protocols.
  • Anaren Microwave provides a troubleshooting guide in the application note AN-113, which covers common issues and solutions for the C3337J5003AHF. Additionally, engineers can contact Anaren Microwave's technical support team for assistance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

C3337J5003AHF Overview

Use the download button to access the C3337J5003AHF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C3337, or try a keyword search, such as RF/Microwave Couplers
