A 2-layer or 4-layer PCB with a thermal via array underneath the device is recommended. The thermal vias should be connected to a solid copper plane on the bottom layer to dissipate heat efficiently.
Use a wire bond process with a gold or aluminum wire, and ensure the bond pad is clean and free of oxidation. Apply a bond force of 10-20 grams and a bond temperature of 150-200°C.
The maximum allowable voltage stress is 1.5 times the rated voltage (Vds) for a maximum of 10 seconds. Exceeding this limit may cause permanent damage to the device.
Handle the device in an ESD-controlled environment, and use ESD-protective packaging and handling materials. Ground yourself before handling the device, and avoid touching the device's pins or die.
Store the device in its original packaging or in a dry, ESD-protected environment. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
C3M0060065J Overview

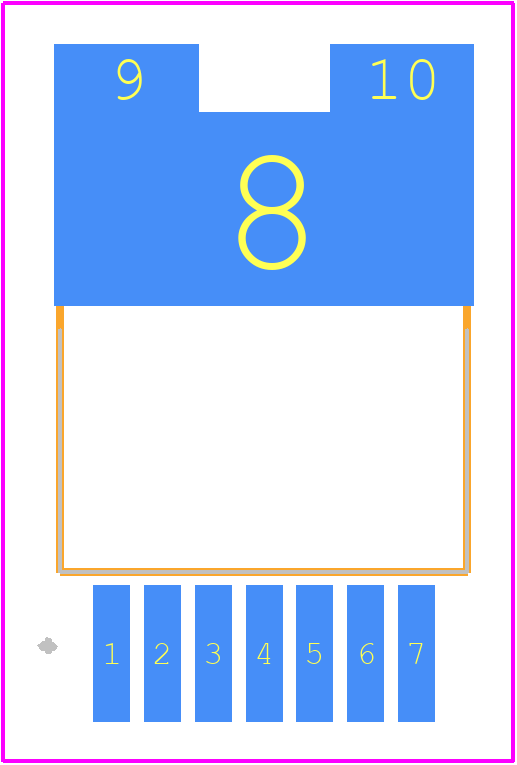

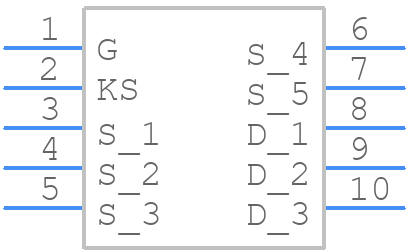

Use the download button to access the C3M0060065J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C3M00,
or try a keyword search, such as Power Field-Effect Transistors
