C3P0304N-A - ELECTROSWITCH

Description: Rotary Switch - 3 Pole - 2 to 4 Position Adjustable - Non-Shorting - 0.25A@28VDC/0.1A@125VAC - Polyester - 90° Index - PCB Terminals

Download C3P0304N-A Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this C3P0304N-A model

Email notifications will be applied after download.

Send part feedback

Symbol

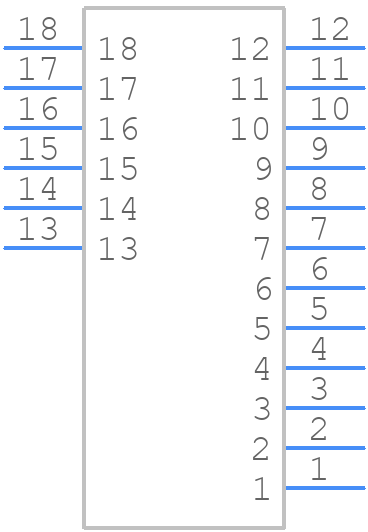

C3P0304N-A - ELECTROSWITCH - PCB symbol

PCB Footprints

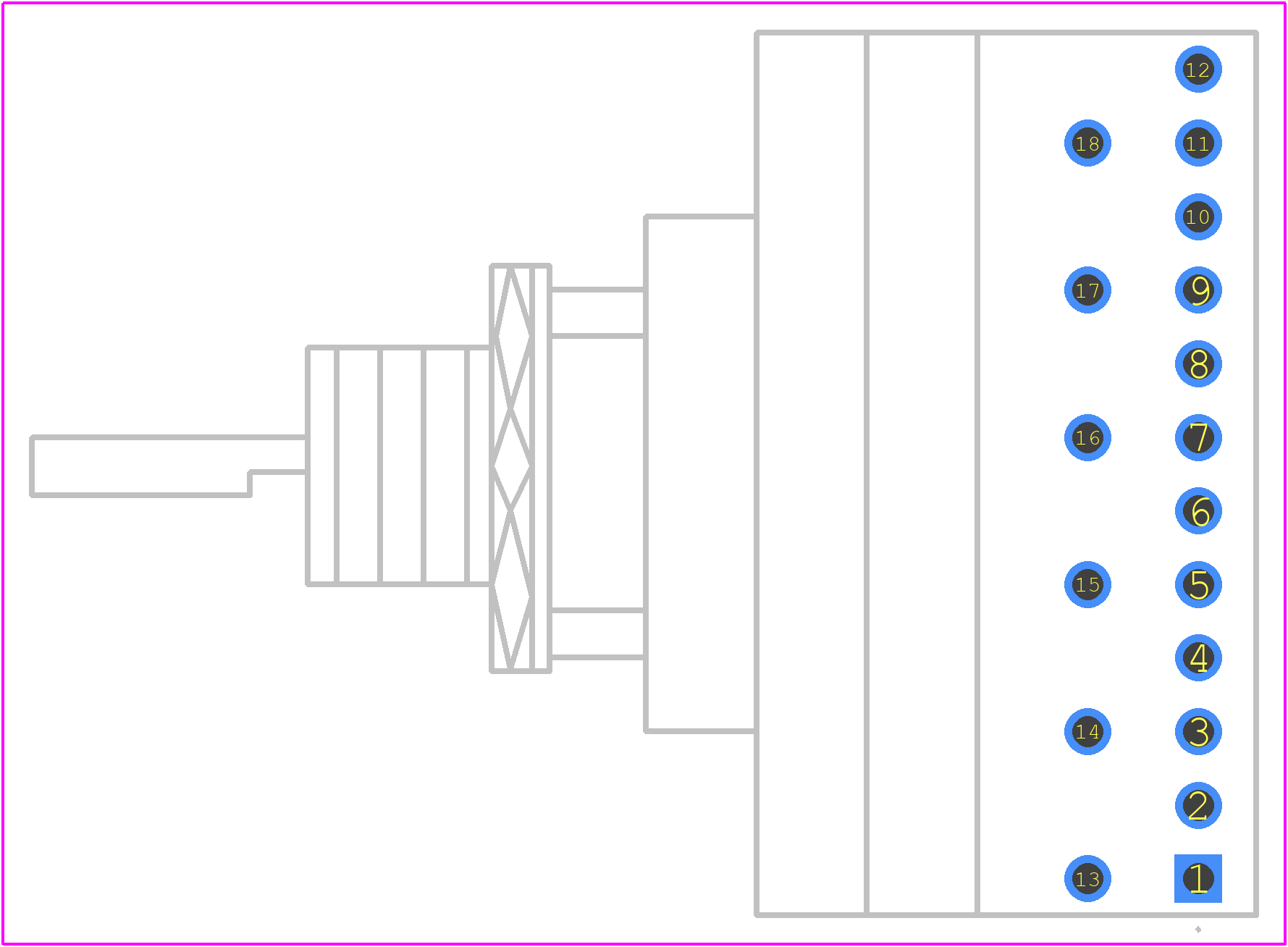

C3P0304N-A - ELECTROSWITCH PCB footprint - Other - Other - C3P0304N-A-6

Datasheet Download Datasheet
Stock & Prices Price & Stock for C3P0304N-A
Part Number C3P0304N-A
Manufacturer ELECTROSWITCH
Pin Count 18
Part Category Connector
Package Category Other
Footprint Name Other - C3P0304N-A-6
Released Date Jul 5, 2023
Last Modified Date Jul 6, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

C3P0304N-A Details

Manufacturer Part Number:
C3P0304N-A
Manufacturer:
Electroswitch Electronic Products

Trust Checks

Community Provided

System Verified

Community Approved

C3P0304N-A Overview

Use the download button to access the C3P0304N-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like C3P03, or try a keyword search, such as Rotary Switches
