C40-058-AE footprint, schematic symbol and 3D model by Ohmite

Symbol

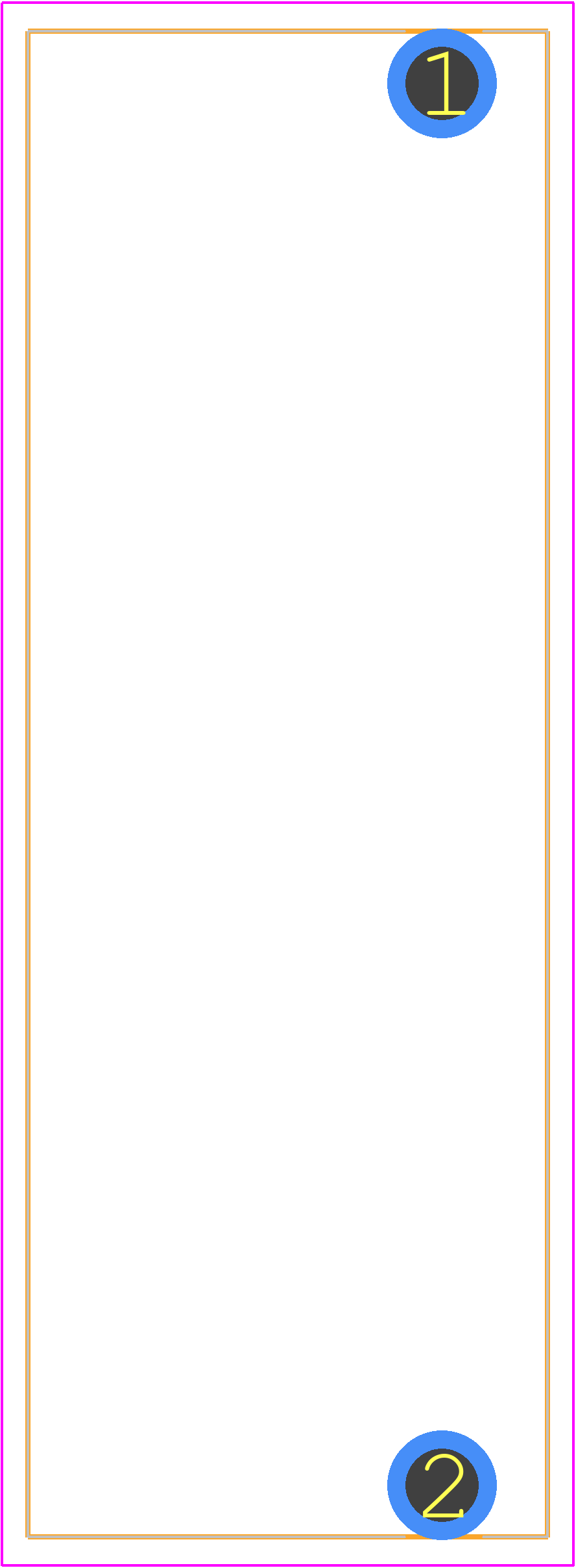

PCB Footprints

3D Models

C40-058-AE Details

The thermal resistance of the C40-058-AE is typically around 10°C/W, but this can vary depending on the specific application and mounting method.
While the C40-058-AE is primarily designed for DC and low-frequency AC applications, it can be used in high-frequency applications up to 100 kHz with some derating. However, it's essential to consult with Ohmite's application engineers to ensure the component meets the specific requirements.
The C40-058-AE is rated for operation up to 150°C, but it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature environments.
Ohmite recommends using a thermal interface material (TIM) and a screw-down or clip-mounting method to ensure optimal thermal performance and mechanical stability.
Yes, the C40-058-AE is compliant with the European Union's RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.

Expert Contribution

System Verified

Community Approved

Use the download button to access the C40-058-AE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like C40-0, or try a keyword search, such as Heat Sinks
