According to TDK's general guidelines, the recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. However, it's always best to consult the specific soldering guidelines for your particular assembly process.
While the C4532C0G2J333K200KA is a high-reliability capacitor, it's still important to consider the specific vibration requirements of your application. TDK recommends consulting their vibration testing guidelines and performing additional testing if necessary to ensure the capacitor meets your specific requirements.
The C4532C0G2J333K200KA is rated for operation up to 125°C, but TDK does offer other capacitors with higher temperature ratings. If you need to operate above 125°C, consider using a capacitor from TDK's high-temperature series, such as the C4532C0G2J333K200KT, which is rated up to 150°C.
The lifespan of the C4532C0G2J333K200KA capacitor depends on various factors, including operating temperature, voltage, and humidity. According to TDK's reliability data, this capacitor has a minimum lifespan of 1,000 hours at 125°C with a 1.5x rated voltage. However, actual lifespan may vary depending on your specific application.
Yes, the C4532C0G2J333K200KA capacitor is compatible with lead-free soldering processes. TDK has ensured that this capacitor meets the requirements for lead-free soldering, making it suitable for use in RoHS-compliant applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
C4532C0G2J333K200KA Overview

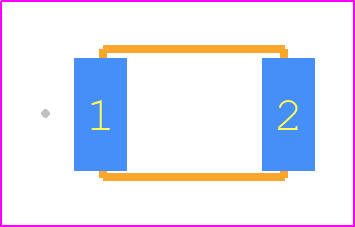

Use the download button to access the C4532C0G2J333K200KA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C4532,
or try a keyword search, such as Ceramic Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
