Part Image

C4AQOLU4150P11J - Yageo Group

Description: Capacitance 1.5 uF Tolerance 5% Voltage DC 900 VDC Temperature Range -55/+125°C Insulation Resistance 20 GOhms Max dV/dt 70 V/us ESR 28.6 mOhms (10kHz 70C) Ripple Current 4.7 Amps Irms (10kHz 75C), 105 Amps Ipkr Inductance 10.9 nH

Download C4AQOLU4150P11J Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this C4AQOLU4150P11J model

Email notifications will be applied after download.

Send part feedback

Symbol

C4AQOLU4150P11J - Yageo Group - PCB symbol

PCB Footprints

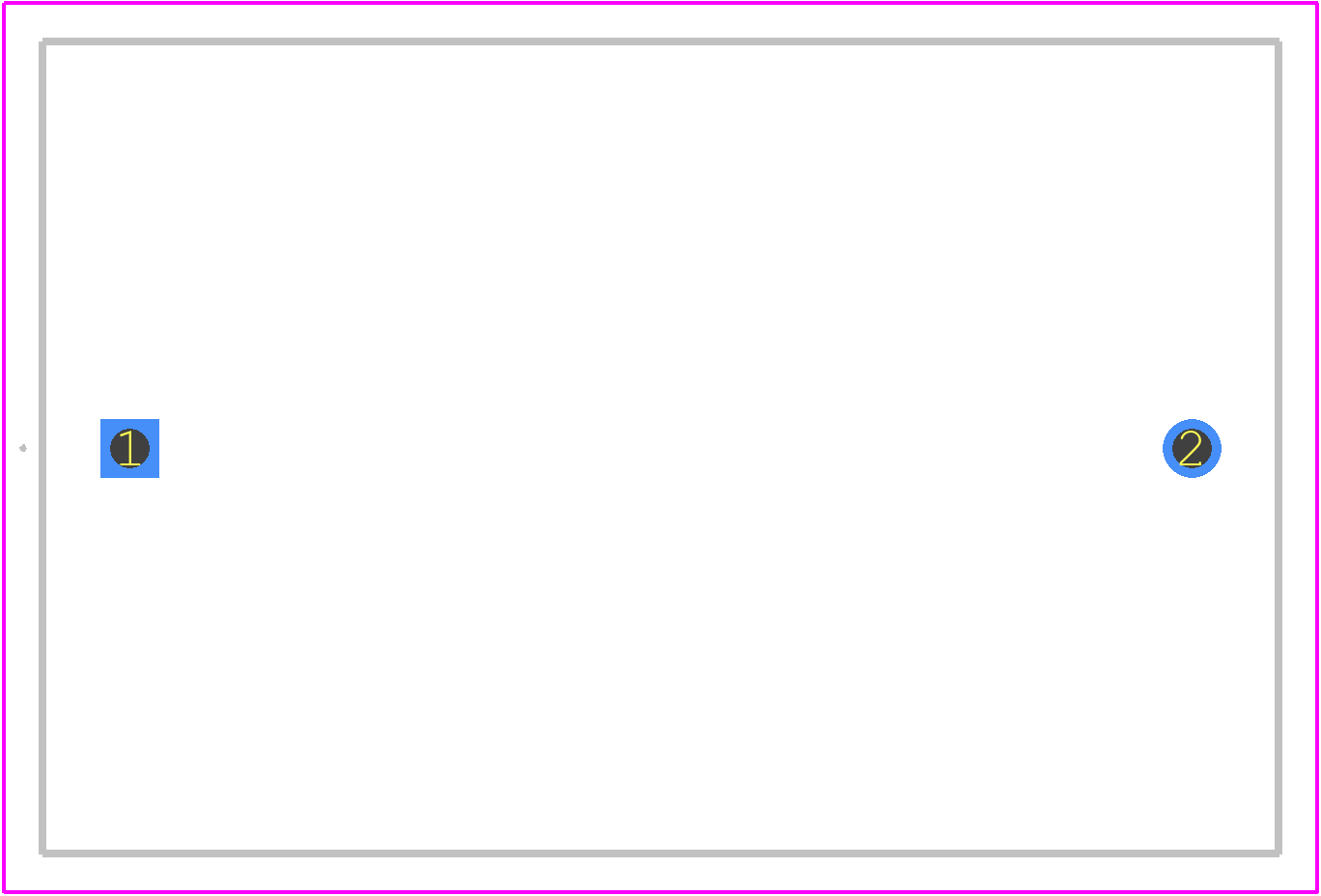

C4AQOLU4150P11J - Yageo Group PCB footprint - Other - Other - 32mm x 21mm x 12.7mm_2025

3D Models

C4AQOLU4150P11J - Yageo Group - 3D model - Other - 32mm x 21mm x 12.7mm_2025

Datasheet Download Datasheet
Stock & Prices Price & Stock for C4AQOLU4150P11J
Part Number C4AQOLU4150P11J
Manufacturer Yageo Group
Pin Count 2
Part Category Capacitor
Package Category Other
Footprint Name Other - 32mm x 21mm x 12.7mm_2025
Released Date Jun 29, 2025
Last Modified Date Feb 23, 2026 9:52 AM UTC
Pinout / Pin List Click Here (Member Only)

C4AQOLU4150P11J Details

Manufacturer Part Number:
C4AQOLU4150P11J
Manufacturer:
YAGEO Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

C4AQOLU4150P11J Overview

Use the download button to access the C4AQOLU4150P11J schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like C4AQO, or try a keyword search, such as Film Capacitors
