C4AUNLW4900M36K - Yageo Group

Description: Radial film capacitor (through-hole), 490 µF, DC 900V, pitch 36.0mm, 2-pin, metallized polypropylene, low ESL, self-healing, AEC-Q200 automotive grade, rated for high frequency, high ripple, and high temperature up to 125°C.

Download C4AUNLW4900M36K Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this C4AUNLW4900M36K model

Email notifications will be applied after download.

Send part feedback

Symbol

C4AUNLW4900M36K - Yageo Group - PCB symbol

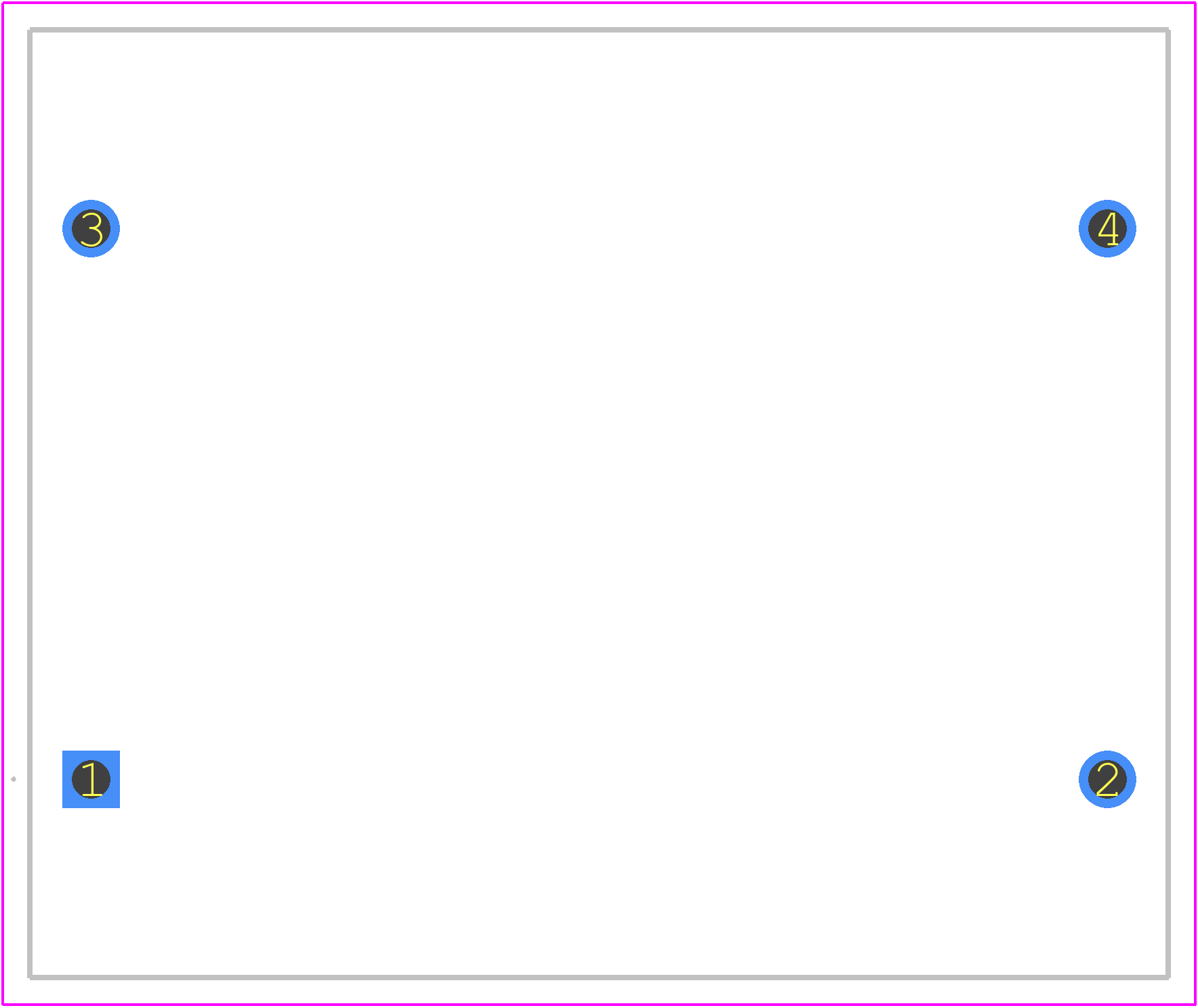

PCB Footprints

C4AUNLW4900M36K - Yageo Group PCB footprint - Other - Other - C4AUNLW4900M36K-2

3D Models

C4AUNLW4900M36K - Yageo Group - 3D model - Other - C4AUNLW4900M36K-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for C4AUNLW4900M36K
Part Number C4AUNLW4900M36K
Manufacturer Yageo Group
Pin Count 4
Part Category Capacitor (4-Pin)
Package Category Other
Footprint Name Other - C4AUNLW4900M36K-2
Released Date Jun 13, 2025
Last Modified Date Jun 13, 2025 6:34 AM UTC
Pinout / Pin List Click Here (Member Only)

C4AUNLW4900M36K Details

Manufacturer Part Number:
C4AUNLW4900M36K
Manufacturer:
YAGEO Corporation

Trust Checks

Community Provided

System Verified

Community Approved

C4AUNLW4900M36K Overview

Use the download button to access the C4AUNLW4900M36K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like C4AUN, or try a keyword search, such as Film Capacitors
