C4MS025120U2-TR - Wolfspeed

Description: SiC MOSFETs SiC, MOSFET,25mohm,1200V, TSC (U2), Industrial - 40 C+ 175 C,- 10 V, + 23 V ,N-Channel

Download C4MS025120U2-TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this C4MS025120U2-TR model

Email notifications will be applied after download.

Send part feedback

Symbol

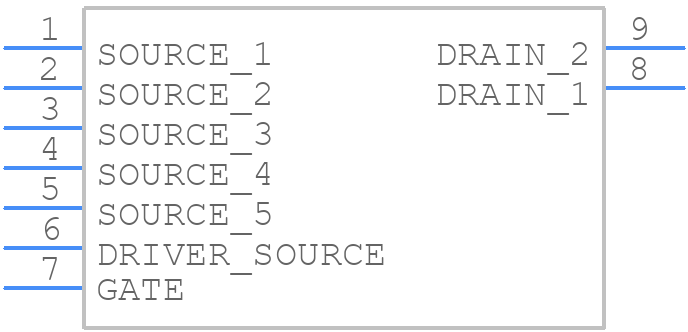

C4MS025120U2-TR - Wolfspeed - PCB symbol

PCB Footprints

C4MS025120U2-TR - Wolfspeed PCB footprint - Other - Other - TSC (U2)

3D Models

C4MS025120U2-TR - Wolfspeed - 3D model - Other - TSC (U2)

Datasheet Download Datasheet
Stock & Prices Price & Stock for C4MS025120U2-TR
Part Number C4MS025120U2-TR
Manufacturer Wolfspeed
Pin Count 9
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - TSC (U2)
Released Date Feb 2, 2026
Last Modified Date Apr 9, 2026 1:58 PM UTC
Pinout / Pin List Click Here (Member Only)

C4MS025120U2-TR Details

Manufacturer Part Number:
C4MS025120U2-TR
Manufacturer:
Wolfspeed

Trust Checks

Community Provided

System Verified

Community Approved

C4MS025120U2-TR Overview

Use the download button to access the C4MS025120U2-TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like C4MS0, or try a keyword search, such as Film Capacitors
