C60-075-VE footprint, schematic symbol and 3D model by Ohmite

Symbol

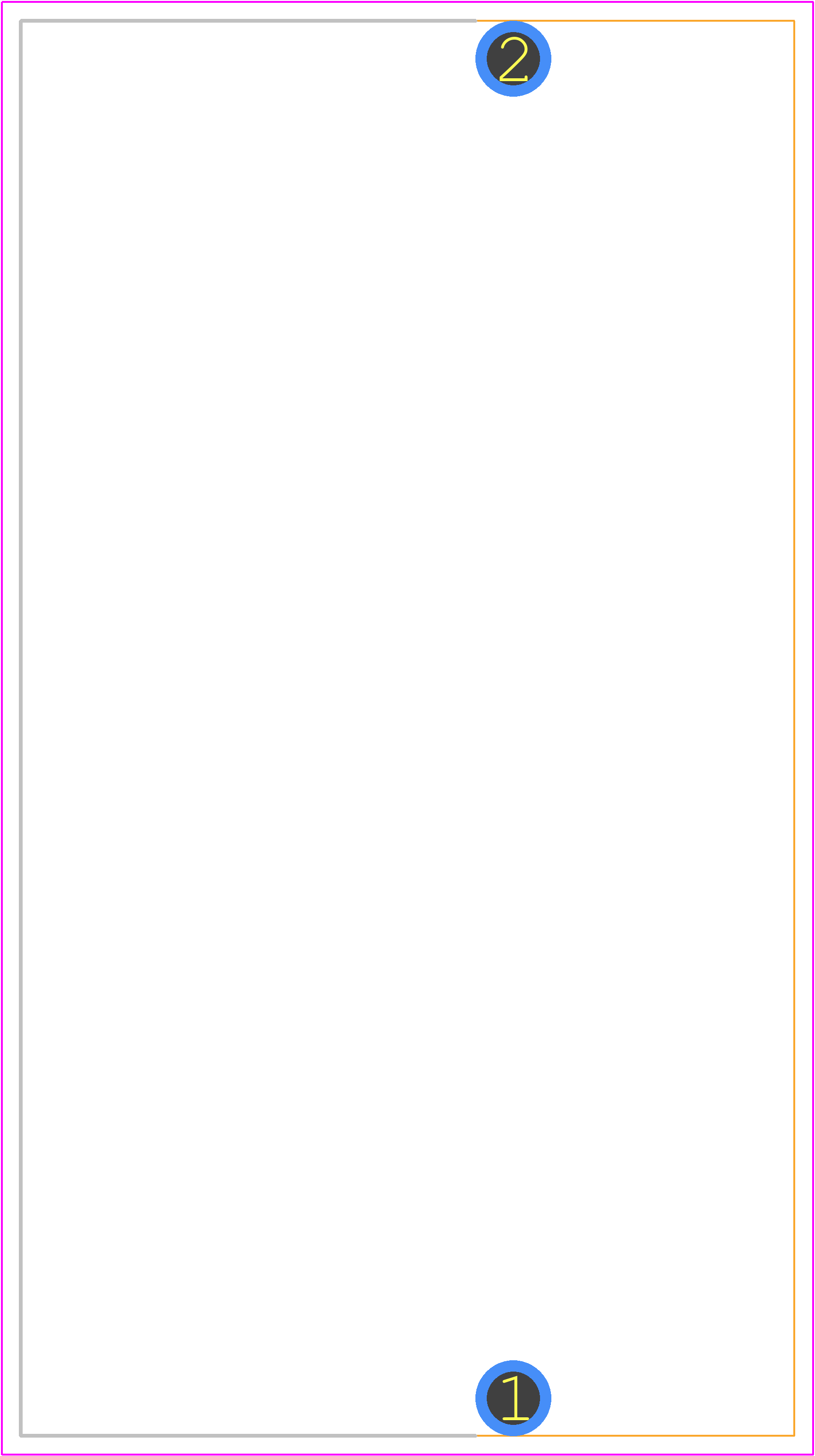

PCB Footprints

3D Models

C60-075-VE Details

The thermal resistance of the C60-075-VE is not explicitly stated in the datasheet, but according to Ohmite's application notes, it is typically around 10-15°C/W.
While the datasheet doesn't explicitly mention vibration resistance, Ohmite's engineers recommend that the C60-075-VE can withstand vibrations up to 10G, but it's recommended to consult with their application engineers for specific use cases.
Yes, the C60-075-VE is RoHS compliant, as stated in Ohmite's environmental compliance documentation. However, it's always recommended to verify compliance with the latest regulations and directives.
Ohmite recommends a soldering profile with a peak temperature of 260°C (500°F) for 10-15 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
While the datasheet doesn't explicitly mention humidity resistance, Ohmite's engineers recommend that the C60-075-VE can operate in environments with relative humidity up to 80% at 40°C (104°F), but it's recommended to consult with their application engineers for specific use cases.

Expert Contribution

System Verified

Community Approved

Use the download button to access the C60-075-VE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like C60-0, or try a keyword search, such as Heat Sinks
