C93402 - TE Connectivity

Description: Low Signal Relays - PCB DPDT 1.25A 12VDC MT2

Download C93402 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

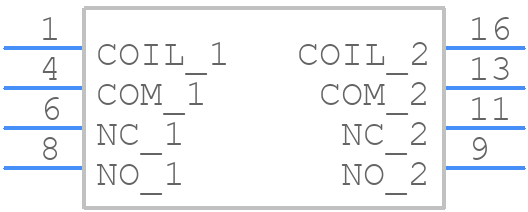

C93402 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
C93402 - TE Connectivity PCB footprint - Other - Other - C93402-2
click to zoom
3D Models
C93402 - TE Connectivity - 3D model - Other - C93402-2
click to zoom

C93402 Details

  • Manufacturer Part Number:

    C93402

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    RELEASE TIME WITH DIODE IN PARALLEL

  • Body Breadth:

    10 mm

  • Body Height:

    11 mm

  • Body Length or Diameter:

    20.2 mm

  • Coil Current(DC)-Max:

    0.013 A

  • Coil Operate Voltage(DC):

    8.6 V

  • Coil Power:

    150 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    968 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    1.25A@150VAC

  • Contact Current(AC)-Max:

    1.25 A

  • Contact Current(DC)-Max:

    1.25 A

  • Contact (DC) Max Rating R Load:

    1.25A@150VDC

  • Contact Voltage(AC)-Max:

    150 V

  • Contact Voltage(DC)-Max:

    150 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    200000 Cycle(s)

  • Insertion Loss-Max:

    -0.97 dB

  • Isolation-Max:

    -14.2 dB

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Frequency-Max:

    900 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    20.2mm X 10mm X 11mm

  • Reference Standard:

    CECC; CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    11 ms

  • Sealing:

    IP67

  • Surface Mount:

    NO

  • Switching Time:

    21 ms

  • Termination Type:

    SOLDER

  • VSWR:

    1.31
