- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CA3086
- Part Number CA3086
- Manufacturer Renesas Electronics
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

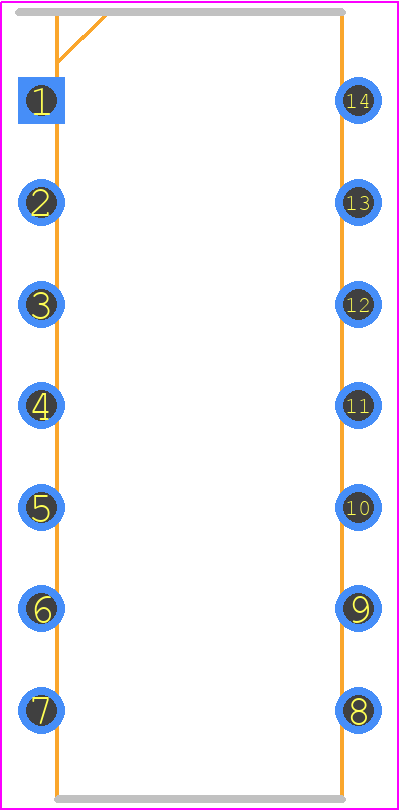

- Footprint Name Dual-In-Line Packages - E14.3 (JEDEC MS-001-AA ISSUE D) 14 LEAD DUAL-IN-LINE PLASTIC PACKAGE
- Released Date Oct 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CA3086 Details
-
Manufacturer Part Number:
CA3086
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
Manufacturer:
Renesas Electronics Corporation
-
YTEOL:
0
Trust Checks
Expert Contribution
System Verified
Community Approved
CA3086 Overview

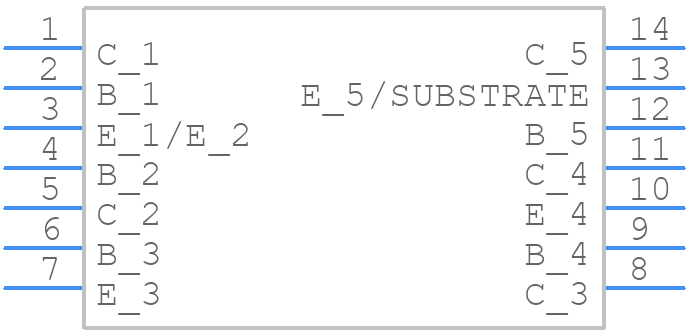

Use the download button to access the CA3086 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CA308,
or try a keyword search, such as Other Transistors
