CA3130AMZ - Renesas Electronics

Description: CA3130A and CA3130 are op amps that combine the advantage of both CMOS and bipolar transistors. Gate-protected P-Channel MOSFET (PMOS) transistors are used in the input circuit to provide very-high-input impedance, very-low-input current, and exceptional speed performance. The use of PMOS transistors in the input stage results in common-mode input-voltage capability down to 0. 5V below the negative-supply terminal, an important attribute in single-supply applications. A CMOS transistor-pair, capable of swin

Download CA3130AMZ Model
Schematic

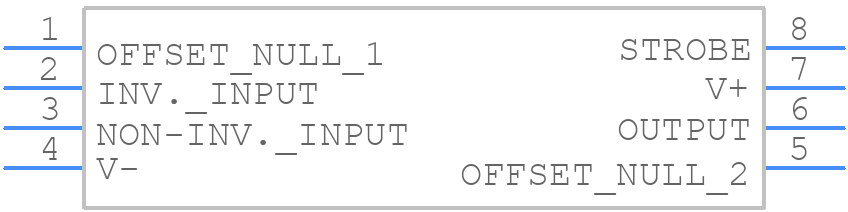

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CA3130AMZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren3
click to zoom
3D Models
CA3130AMZ - Renesas Electronics  - 3D model - Small Outline Packages - M8.15-ren3
click to zoom

CA3130AMZ Details

  • Manufacturer Part Number:

    CA3130AMZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00003 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00003 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -8 V

  • Neg Supply Voltage-Nom (Vsup):

    -7.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    30 V/us

  • Supply Current-Max:

    15 mA

  • Supply Voltage Limit-Max:

    8 V

  • Supply Voltage-Nom (Vsup):

    7.5 V

  • Surface Mount:

    YES

  • Technology:

    BIMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    15000

  • Voltage Gain-Min:

    50000

  • Wideband:

    YES

  • Width:

    3.9 mm

CA3130AMZ Frequently Asked Questions (FAQs)

  • The maximum power supply voltage that can be applied to the CA3130AMZ is ±18V. Exceeding this voltage may cause damage to the device.
  • To ensure stability in a unity-gain configuration, a capacitor (typically 10-100pF) should be connected between the output and the inverting input to prevent oscillations.
  • The recommended operating temperature range for the CA3130AMZ is -25°C to +85°C. Operating outside this range may affect the device's performance and reliability.
  • While the CA3130AMZ can be used as a comparator, it is not recommended due to its relatively slow slew rate and limited bandwidth. A dedicated comparator IC would be a better choice for most applications.
  • To minimize noise and hum, use proper PCB layout techniques, decouple the power supply lines with capacitors, and consider using a noise-reducing capacitor (e.g., 10nF) between the inverting input and ground.
