CA3130E - Renesas Electronics

Description: Operational Amplifier with MOSFET Input/Bipolar Output

Download CA3130E Model

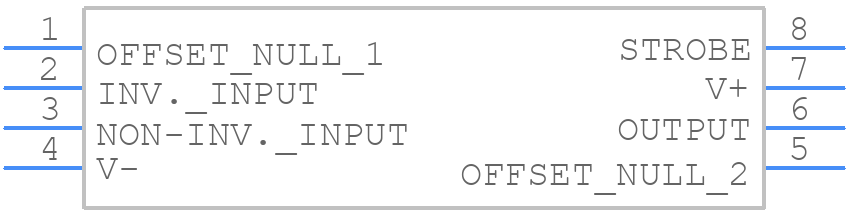

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CA3130E - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 Ld PDIP
click to zoom
3D Models
CA3130E - Renesas Electronics  - 3D model - Dual-In-Line Packages - 8 Ld PDIP
click to zoom

CA3130E Details

  • Manufacturer Part Number:

    CA3130E

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00005 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00002 µA

  • Input Offset Voltage-Max:

    15000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.585 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -8 V

  • Neg Supply Voltage-Nom (Vsup):

    -7.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    5.33 mm

  • Slew Rate-Nom:

    30 V/us

  • Supply Current-Max:

    15 mA

  • Supply Voltage Limit-Max:

    8 V

  • Supply Voltage-Nom (Vsup):

    7.5 V

  • Surface Mount:

    NO

  • Technology:

    BIMOS

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    15000

  • Voltage Gain-Min:

    50000

  • Wideband:

    YES

  • Width:

    7.62 mm

CA3130E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CA3130E is ±2V to ±18V, although the absolute maximum rating is ±20V.
  • To minimize the effects of the CA3130E's high input bias current (up to 500 nA), use a low-impedance source, add a voltage follower stage, or use a current-compensating resistor in the feedback path.
  • While the CA3130E can be used as a comparator, it's not recommended due to its relatively slow slew rate (0.5 V/μs) and lack of hysteresis. A dedicated comparator like the CA3140E is a better choice.
  • To ensure stability, use a compensation capacitor (e.g., 10-100 pF) between the output and the inverting input, and avoid using long feedback paths or high-gain configurations.
  • The CA3130E has a relatively low bandwidth (1.5 MHz) and slew rate, making it less suitable for high-frequency applications. Consider using a faster op-amp like the CA3270E or CA3280E instead.
