A good PCB layout for the CA3280E involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
To ensure the CA3280E is properly biased, make sure to follow the recommended biasing scheme outlined in the datasheet. This typically involves applying a voltage of 15V to 30V to the VCC pin, and ensuring that the input voltage is within the recommended range. Additionally, it's important to ensure that the device is properly decoupled using capacitors to minimize noise and ensure stable operation.
When using the CA3280E, it's important to consider thermal management to ensure the device operates within its recommended temperature range. This can be achieved by providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to follow the thermal design guidelines outlined in the datasheet to ensure optimal thermal performance.
To troubleshoot common issues with the CA3280E, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the input voltage is within the recommended range and that the device is properly biased. If the issue persists, check the PCB layout for any potential noise or signal integrity issues. Finally, consult the datasheet and application notes for troubleshooting guidelines and potential solutions.
The CA3280E and CA3280A are both high-voltage op-amps, but they have some key differences. The CA3280E has a higher voltage rating (30V vs 22V) and a higher slew rate (10V/us vs 5V/us). Additionally, the CA3280E has a lower input bias current and a higher common-mode rejection ratio. Consult the datasheets for both devices to determine which one is best suited for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CA3280E Overview

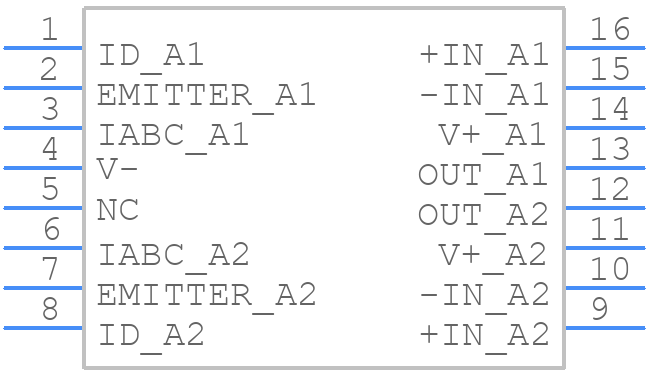

Use the download button to access the CA3280E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CA328,
or try a keyword search, such as Operational Amplifiers
